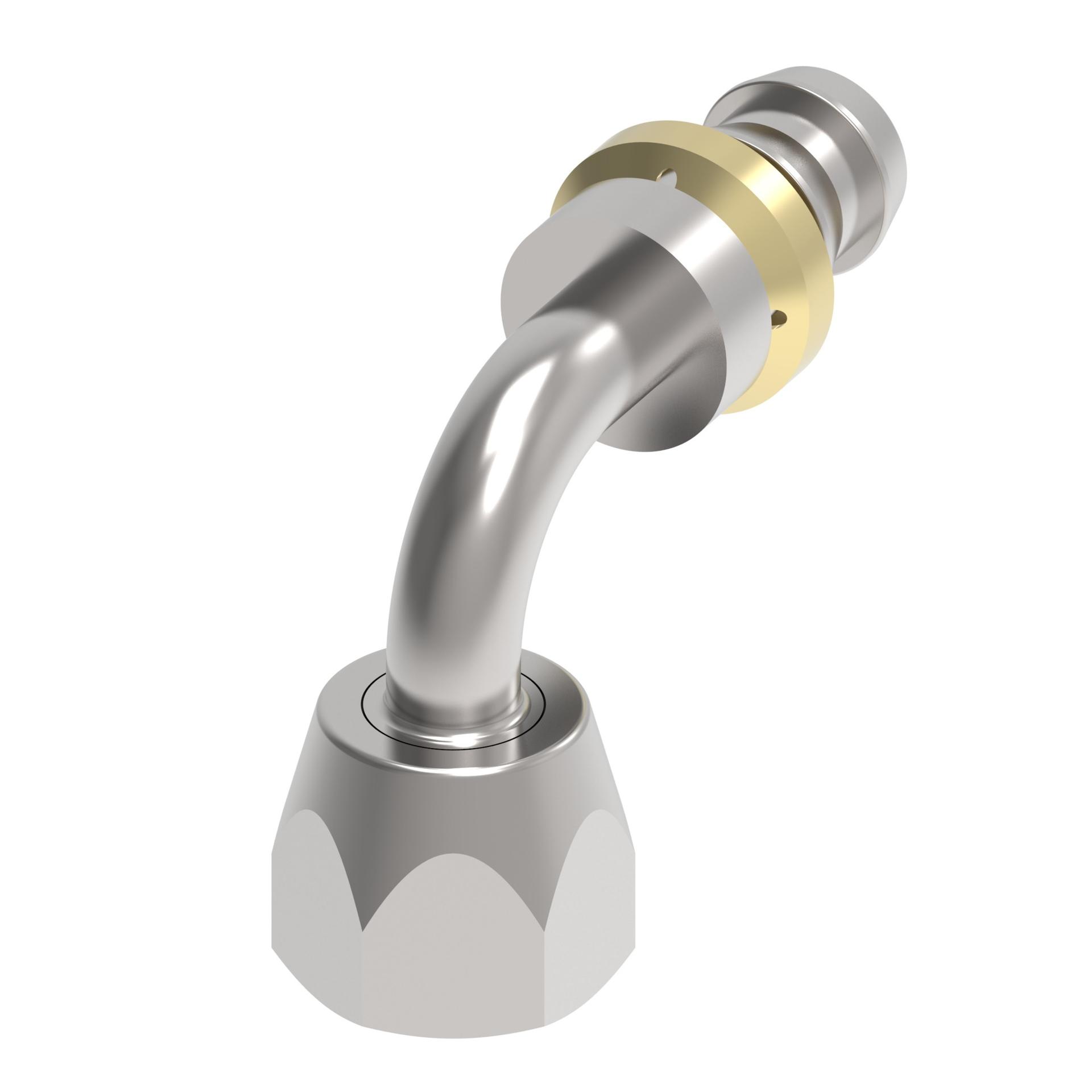

Hose Fittings FBM-1441 [RIGHT]

HOSE NIPPLE ASSY,HP/12,ORS-F/12,CS,90D

FJ7358-1212S

Tools

Product specifications

Characteristic
Value
A dimension IN3.223
A dimension MM81.864
Angle shape90 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hoses255625652575FC332FC647 H201
Construction StyleReusable
Drop dimension IN1.915
Drop dimension MM48.64
End size 1-12
End type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.377
Hex size 1 MM35.000
Hose cut off factor IN1.700
Hose cut off factor MM43.180
Hose size-12
Inside diameter IN0.580
Inside diameter MM14.732
Product height in3.070
Product height mm77.978
Product length in3.910
Product length mm99.314
Product materialCarbon steel
Product width in1.380
Product width mm35.052
Thread size 11 3/16-12 UN

General specifications

Characteristic
Value
EAN/UPC678146065957
