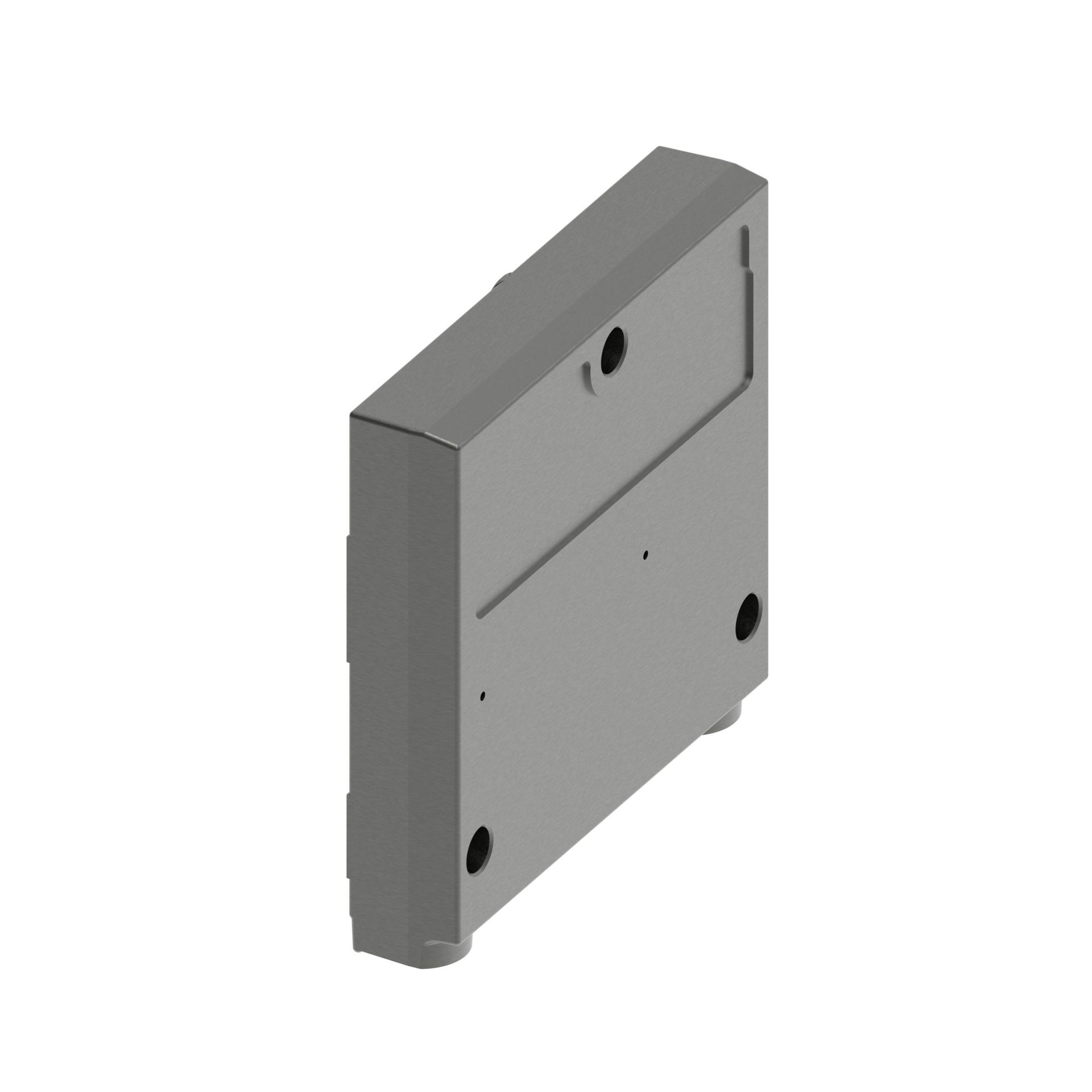

PVS End Module BSP without connections

157B2000

Model code: SVSENDE10C00KLM8A000TT00000000000000000000000023023000000SSL0L000010000

Tools

Characteristic	Value	Description
Module Type	E	End Module
Valve Family	1	PVG16-48
Port Connection Type	0	N/A
T0 Facility	C	T0 Compatible
Pilot Pressure	0	N/A
Pilot Press. Rduct. Valve Type	0	N/A
Continous System Pressure	K	300
Maximum System Pressure Peaks	L	350
Mounting Thread Size	M8	M8
Pilot Dump Facility	0	N/A
Connector Type	0	N/A
Additional Feature 2	00	N/A
Additional Feature 3	00	N/A
Shock Valve Facility	0	N/A
T0 Port Size	00	N/A
T0 Port Placement	0	N/A
LX Port Size	00	N/A
LX Port Placement	0	N/A
Gauge Port Pilot Pressure Size	00	N/A
Gauge Port Pilot Pres Location	0	N/A
Pump Port Size	00	N/A
Pump Port Placement	0	N/A
Tank Port Size	00	N/A
Tank Port Placement	0	N/A
LS/LY Port Size	00	N/A
LS/LY Port Placement	0	N/A
Width	23	23
Tie Rod Length	023	23
Pneumatic Port Size	00	N/A
Pneumatic Port Placement	0	N/A
Gauge Port Pump Pressure Size	00	N/A
Pump Port Pressure Location	0	N/A
Tie Rod Type Left	S	Through Hole
Tie Rod Type Right	S	Through Hole
Left Interface	L	PVG32-Oring-T0
Right Interface	0	N/A
Bottom Interface	L	Mounting Feet A/B
Top Interface	0	N/A
A Side Interface	00	N/A
B Side Interface	00	N/A
Primer	0	N/A
Product Category	1	Standard Part
Ex Application	0	N/A
Certification	00	N/A
Additional Feature 1	TT	Tank A-B Gallery Connected
LY (LS Return) Facility	0	N/A
Marking	0	N/A
Material	A	Aluminium
Product type		N/A
Voltage	0	N/A

Characteristic	Value
Proposition 65	Cancer and Reproductive Harm
