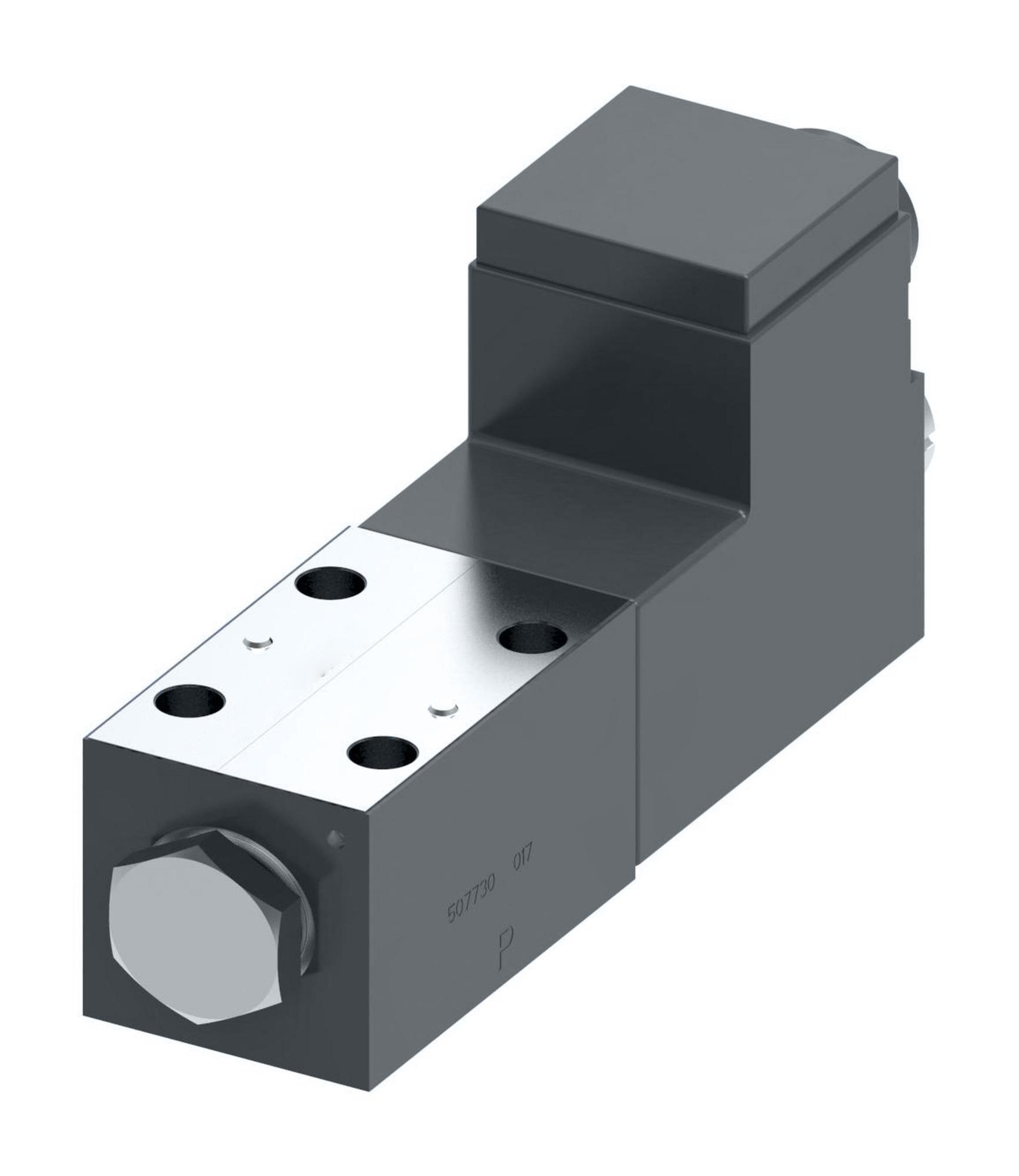

Vickers by Danfoss DG4V-3 65 Design Directional Control Valves Single Stage DG4V3S0ALMX5H460 (RIGHT)

DG4V4-012A-M-X5-ER-4-10, DG4V4012AMX5ER410

02-399623


Tools

Product specifications

Characteristic
Value
Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating120 VAC 60Hz
Design Series10 Series
Electrical ConnectionAtex ExdIIC2G zone 1&2 CSA/UL
Energ Time15-35 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid CompatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model CodeDG4V4012AMX5ER410
PerformanceStandard performance
Power Consumption27.5 watts
Pressure rating BAR315
Pressure rating PSI4500
Seal TypeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Solenoid FeaturesATEX approval
Special FeaturesNone
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve TypeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
