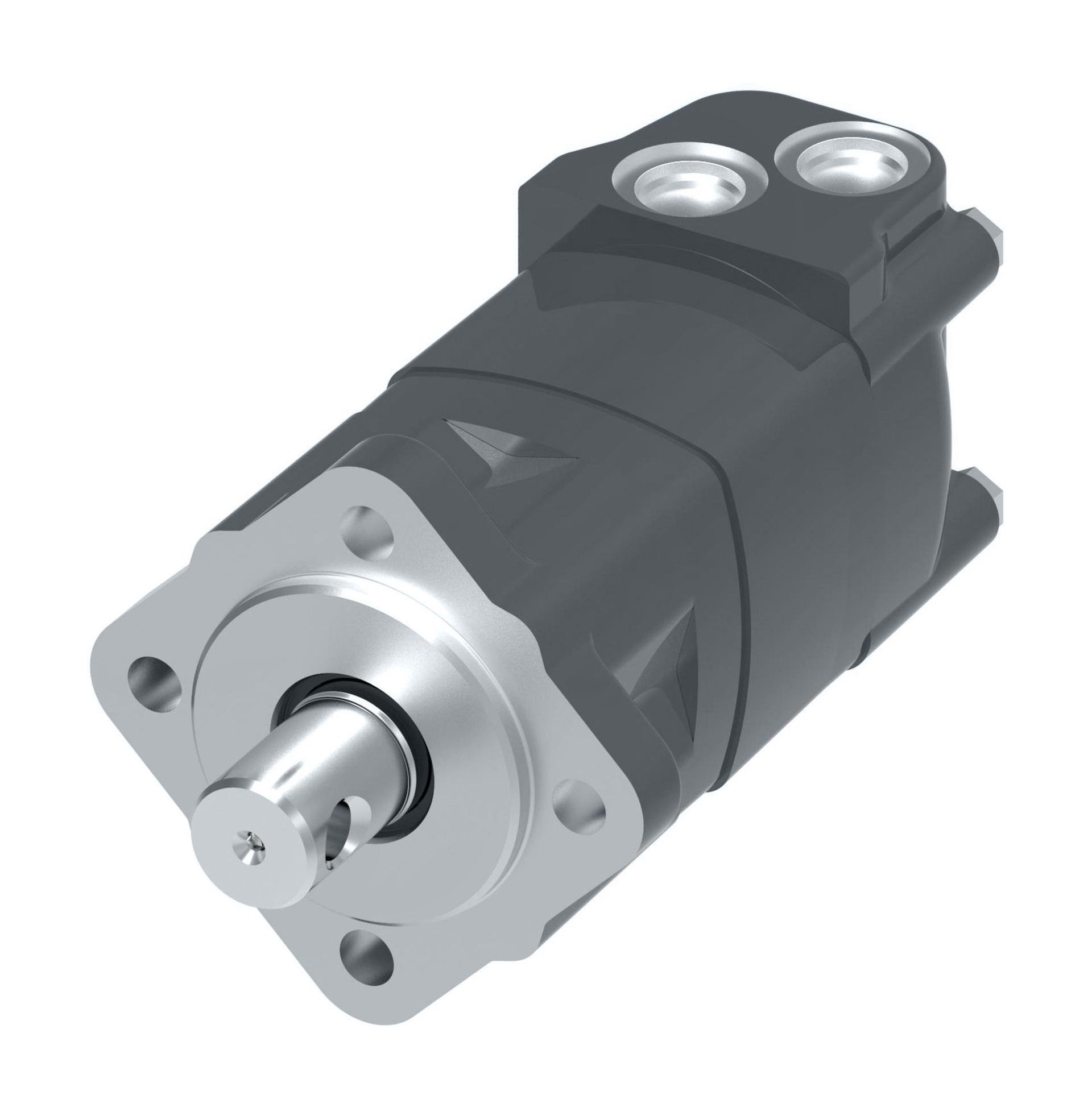

2000 series single-speed motors
The durable, reliable 2000 series motors provide torque up to 850 Nm [627 lb-ft] thanks to a proven design. The latest innovation in this series is our patented “Drive-in-Drive” technology that widens the range of available displacements, and many options are available to make these motors suitable for a wide variety of applications.
Features and benefits
- Three-zone design for longer life and true bi-directionality
- Bearings that meet the highest industry standards
- Options to optimize performance in every application
- Integrated cross-over relief valve option
- Easy to include in system design
- Proven reliability and performance in tough applications
- Compact design that maximizes power density
Applications
- Skid steer attachments
- Swing motor
- Brush cutters and mowers
- Harvesting equipment
- Turf equipment
Specifications
- 13 geroler element displacements
- Flow 75 l/min [20 US gal/min] continuous and 115 l/min [30 US gal/min] intermittent*
- Speed up to 1,215 continuous
- Pressure 205 bar [3,000 psi] continuous and 310 bar [4,500 psi] intermittent
- Torque 845 Nm [7,470 lb in] continuous and 930 Nm [8,225 lb in] intermittent
*Intermittent operation refers to operation up to six seconds every minute
