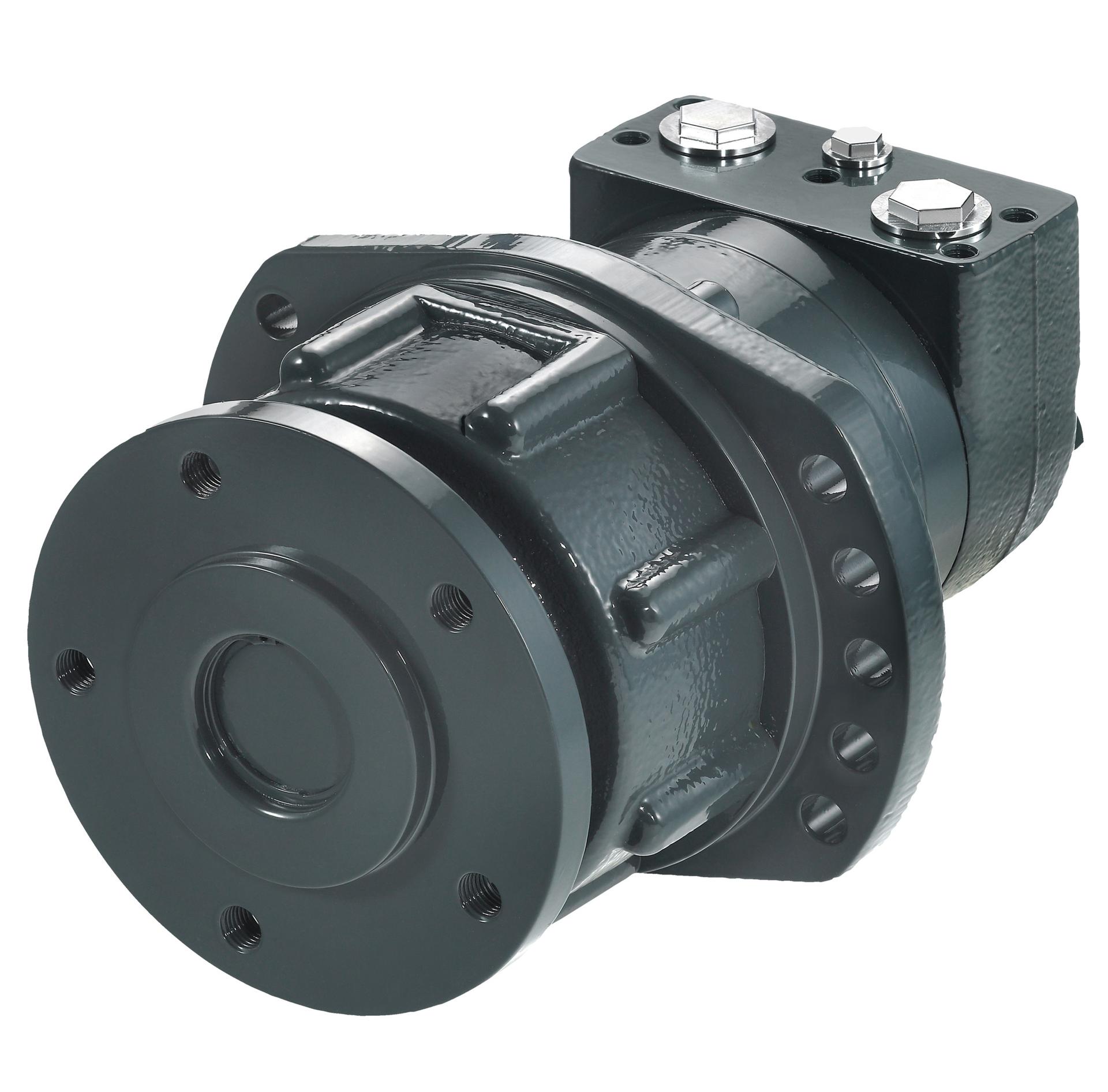

Product specifications
Characteristic | Value |
|---|---|
| Model code | TMTH-0400-B-NN-W58-AF-1D-K10-A-J-1B-0-N-AA-AAE56-NN-NN-NN-SP-NNN |
| Motor Series | TMTH Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor size | 400 |
| Geometric displacement [cm3/r [in3/r]] | 393.1 [24.00] |
| Motor type | Wheel |
| Motor function | Standard |
| Mounting flange type | 10 Bolt - Wheel |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 179.9 x 11.8, 210.0, 14.2 [7.08 x 0.46, 8.27, 0.56] Rear: 179.9 x 7.2, 210.0, 14.2 [7.08 x 0.28, 8.27, 0.56] |
| Shaft type | Wheel hub |
| Shaft dimension | Thread Hole Flange: 5 x M14 x 1.5 - BCD 140 mm [5.5 inch] |
| Shaft Key | n/a |
| Main port thread type | BSP |
| Main port style | Sideport - staggered |
| Main port dimension | G 3/4, 5 x M10 block mounting threads |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Painted, Black, Medium gloss |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Dust seal | Standard plus seal guard |
| Shaft Seal | NBR - Standard |
| Seal Kit | 11131621 |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | Speed Sensor ready (EMD) |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design code | 00 |
| Delete Model Code | Yes |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
