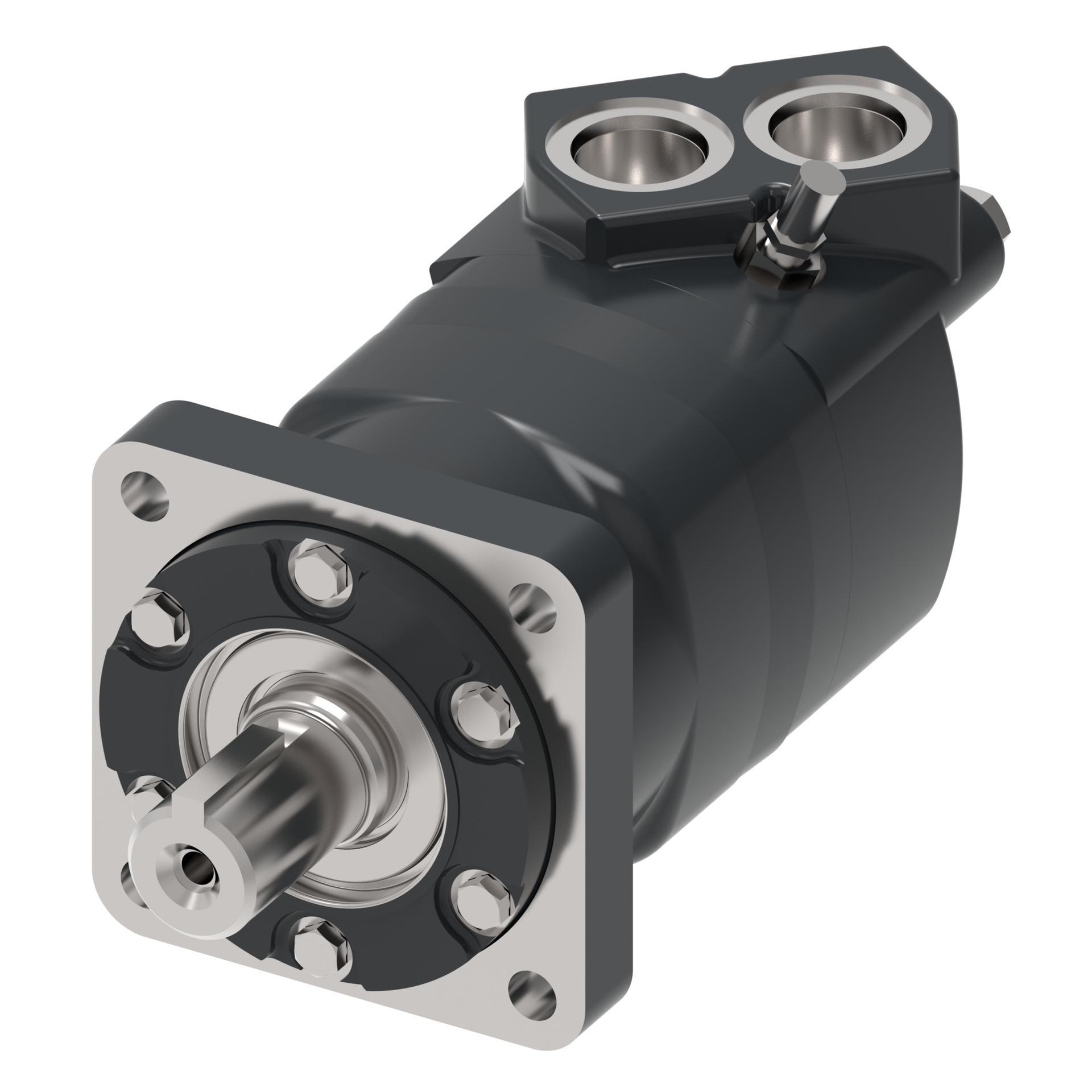

Product specifications
Characteristic | Value |
|---|---|
| Model Code | M06150AB03AA0200000AB00000000F |
| Motor Series | 6000 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor size | 245 |
| Geometric displacement [cm3/r [in3/r]] | 246.5 [15.04] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 127.0 x 12.7, 162.0, 14.4 [5.00 x 0.50, 6.38, 0.57] (SAE CC) |
| SHAFT TYPE | Splined |
| Shaft dimension | Dia. 1 1/2 inch, 17T, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main port thread type | UN / UNF |
| Main port style | Sideport - staggered |
| Main port dimension | 1 5/16 - 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint information | n/a |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
| Check valve function | Yes |
| Hydraulic valve function | None |
| Sensor | Speed, Hall effect, 30 pulses, 127 mm [5.0 inch] wire lenght, Packard weather pac shroud connector |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Accessories | Wpc s 30p 127mm wire |
| Case flow options | 7/16-20 check valve |
| Customer identification | None |
| Design code | Sixth |
| Displacement | 246.5 cm3/r [15.04 in3/r] |
| Geroler options | Standard |
| Low pressure relief | None |
| Low pressure relief | None |
| MOUNTING TYPE | 4 s p127 b162 h14 |
| Mounting type | 4 s p127 b162 h14 |
| Output shaft type | Spl 17t 12/24 sl40 |
| Output shaft type | Spl 17t 12/24 sl40 |
| Paint packaging | No paint |
| Port type | Sta 1 5/16-12 |
| Pressure flow option | None |
| Product | Motor |
| Product View (Switch) | Global (Standard) |
| Seal options | Standard |
| Seal options | Standard |
| Series | 6000 series |
| Series | 6000 series |
| Special assembly instructions | None |
