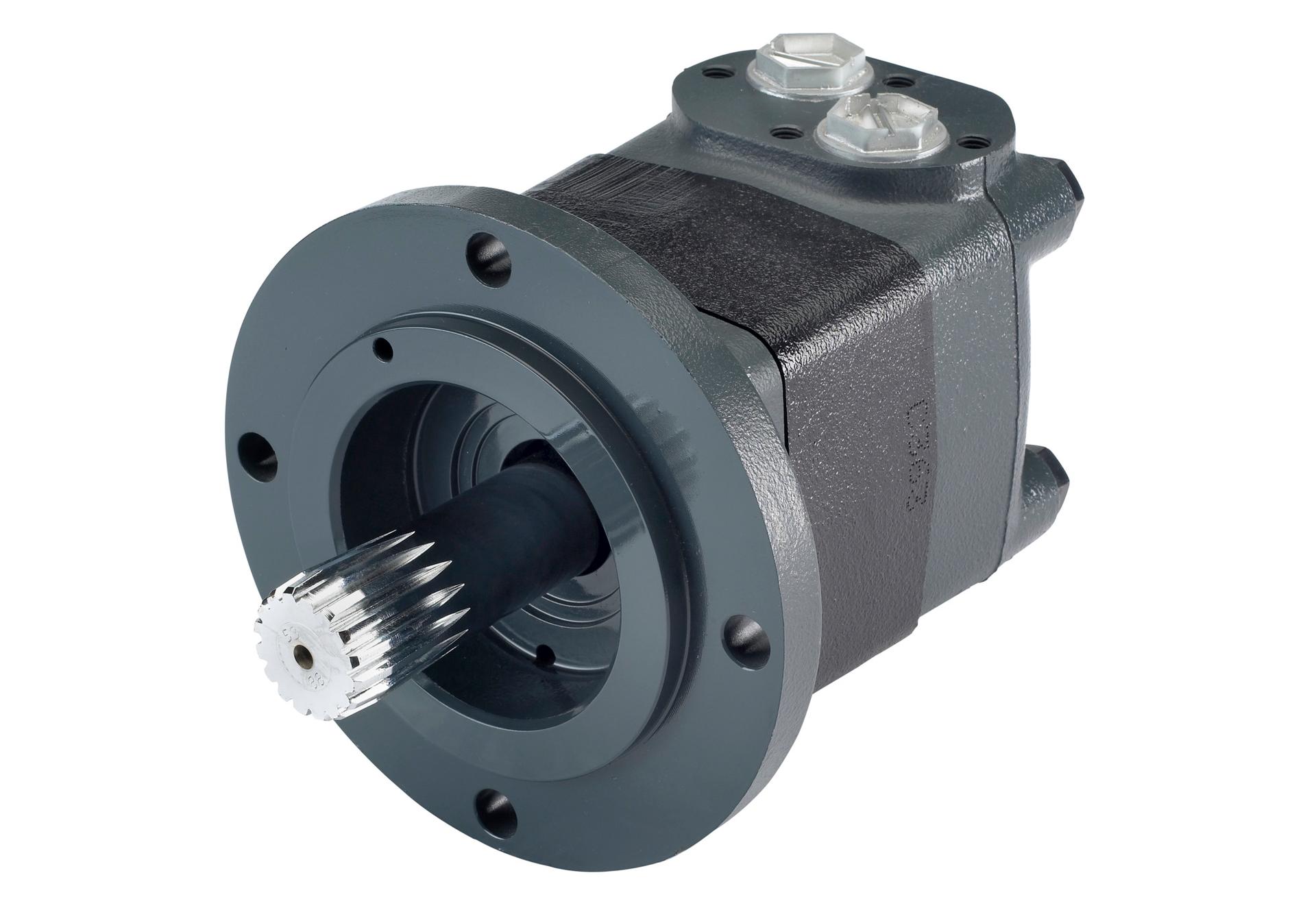

MOTOR-ORBITAL,OMT SERIES 250 [15.2], OMT-0250-C-NN-S14-AD-1D-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

151B3038

Model code: OMT-0250-C-NN-S14-AD-1D-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Tools

Characteristic	Value	Description
Model code		OMT-0250-C-NN-S14-AD-1D-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series		OMT Series
Valve system		Disc valve with valve drive
Orbital gearwheel set type		Geroler
Motor size		250
Geometric displacement [cm3/r [in3/r]]		251.8 [15.36]
Motor type		Short
Motor function		Standard
Mounting flange type		4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]		124.9 x 8.0, 160.0, 14.0 [4.92 x 0.325, 6.30, 0.55]
Shaft type		None
Shaft dimension		n/a
Shaft Key		n/a
Main port thread type		BSP
Main port style		Sideport - staggered
Main port dimension		G 3/4, 4 x M10 block mounting threads
Drain Port Dimension		G 1/4
Brake Release Port Dimension		n/a
Painted		No
Paint information		n/a
Special features hardware		Standard
Special Features Assembly		Standard
Dust seal		n/a
Shaft Seal		n/a
Seal Kit		151B0114
Front bearing type		n/a
Rear bearing type		n/a
Orbital gearwheel set		Standard
Check valve function		Yes
Hydraulic valve function		None
Sensor		None
Packaging		Single pack
Name Tag		Danfoss name tag
Design Code		2
Size/Dimensions		L23.8XW44.4XH22 CM

Characteristic	Value
Proposition 65	Cancer and Reproductive Harm
