Product specifications
Characteristic | Value |
|---|---|

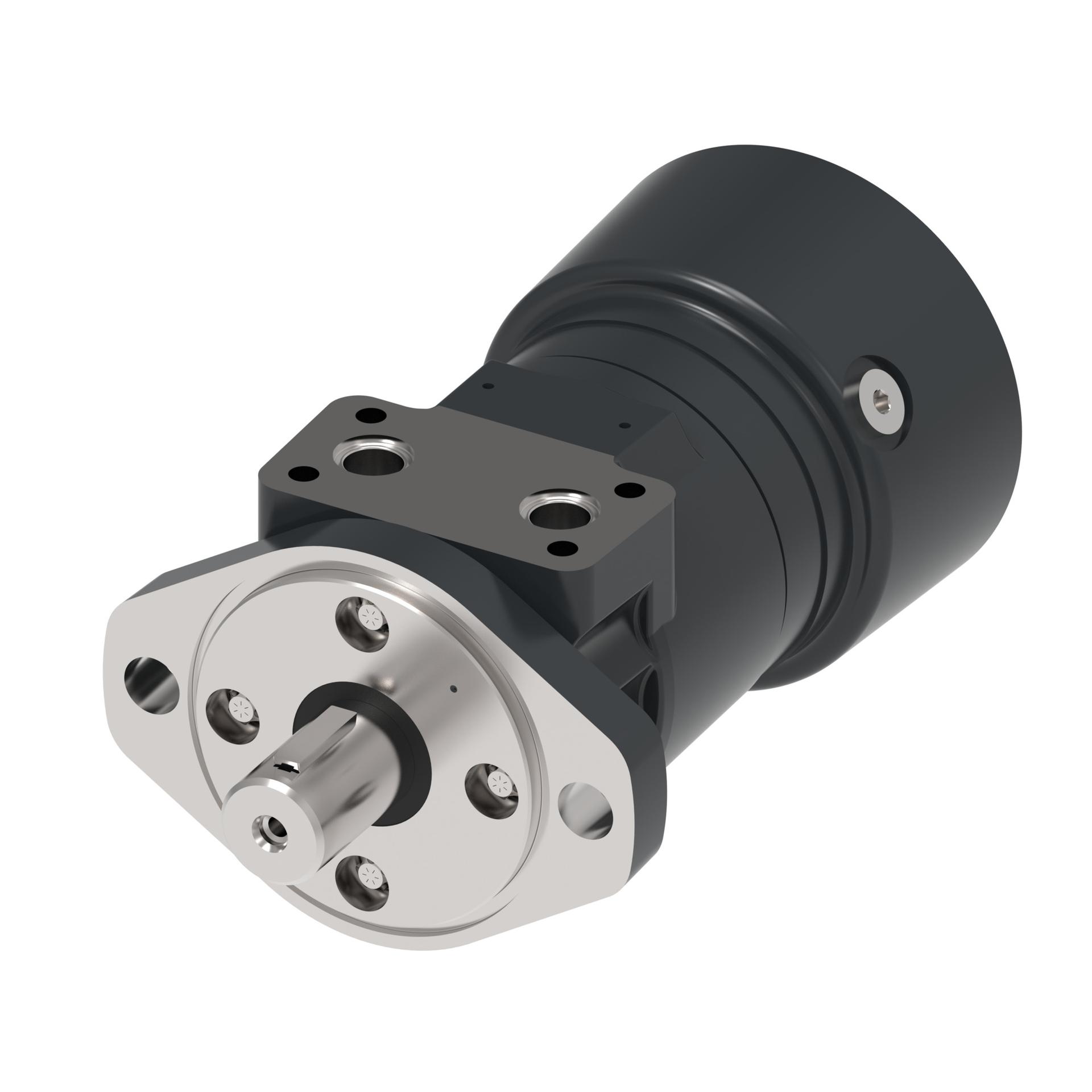

| Model Code | MTB226AA01AC00A0000000AB0AA00B |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Motor size | 370 |
| Geometric displacement [cm3/r [in3/r]] | 370 [22.6] |
| Motor type | Motor - Brake |
| Motor function | Brake - Low release pressure, Higher efficiency and smooth running (Low speed valving) |
| Mounting flange type | 2 Bolt - A |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54] |
| Shaft type | Straight |
| Shaft dimension | Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main port thread type | Manifold |
| Main port style | Sideport - aligned |
| Main port dimension | 0.500 inch drilled hole, 4 x 5/16 - 18 UNC-2B mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring Port |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special features hardware | Low speed valve |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | No data available |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 2 |
| Brand | Danfoss |
| CMM | T-BRAKE_CMM |
| Case flow options | None |
| Customer identification | None |
| Design code | Two |
| Displacement | 370 cm3/r [22.6 in3/r] |
| Geroler options | Standard |
| Mounting type | 2 s p83x3 b106 h14 |
| Mounting type | 2 s p83x3 b106 h14 |
| Output shaft type | 01 Str 1in |
| Output shaft type | 01 Str 1in |
| Paint packaging | Primer low gloss black |
| Port type | Man 5/16-18 |
| Product | Motor |
| Product View (Switch) | Global (Standard) |
| Seal options | Standard seals |
| Seal options | Standard seals |
| Series | T series motor w/brake |
| Series | T series motor w/brake |
| Shaft options | None |
| Special assembly instructions | None specified |
| Speed sensor | None |
| Sub brand | Char-Lynn |
| Valve options | None |
