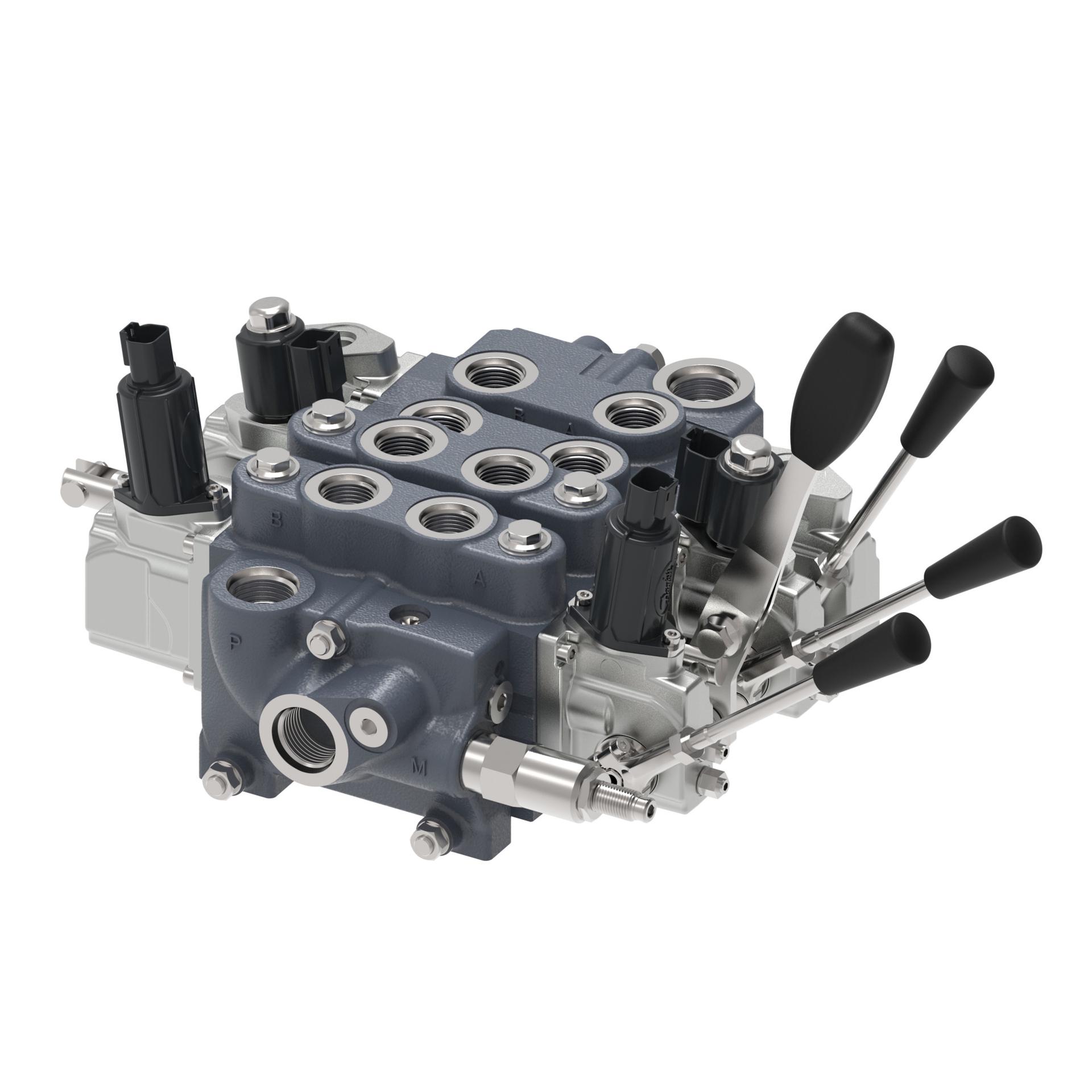

DVG 60/100

DVG 60/100 open-center directional control valves for American markets complement our extensive spool valves portfolio to support a wide range of machines and applications. With Danfoss valve solutions and expertise, you can increase your operational efficiency and drastically shorten lead times without compromising on features or cost.

Features and benefits

  • Common interface enabling flexible configuration
  • Exceptional return flow optimized for fast cylinder retraction
  • Market-leading bypass pressure drop and work-port leakage
  • Outstanding electrohydraulic performance
  • Rapid delivery and an expansive distribution network

Applications

  • Mobile crane
  • Skid steer
  • Sweeper scrubber
  • Compact track loader
  • Paver
  • Compact utility tractor
  • Compact tractor
  • Compact wheel loader

Specifications

Work port flows 60 l/min and 100 l/min [15.8 US gal/min and 26.4 US gal/min]
Work port pressure rating 310 bar [4,500 psi]
Max number of work sections 12
Circuit types Series, parallel, tandem
Control types Electronic proportional and on-off, mechanical, cable, hydraulic, pneumatic, electro-pneumatic

Products shown: 8

  • Tile image

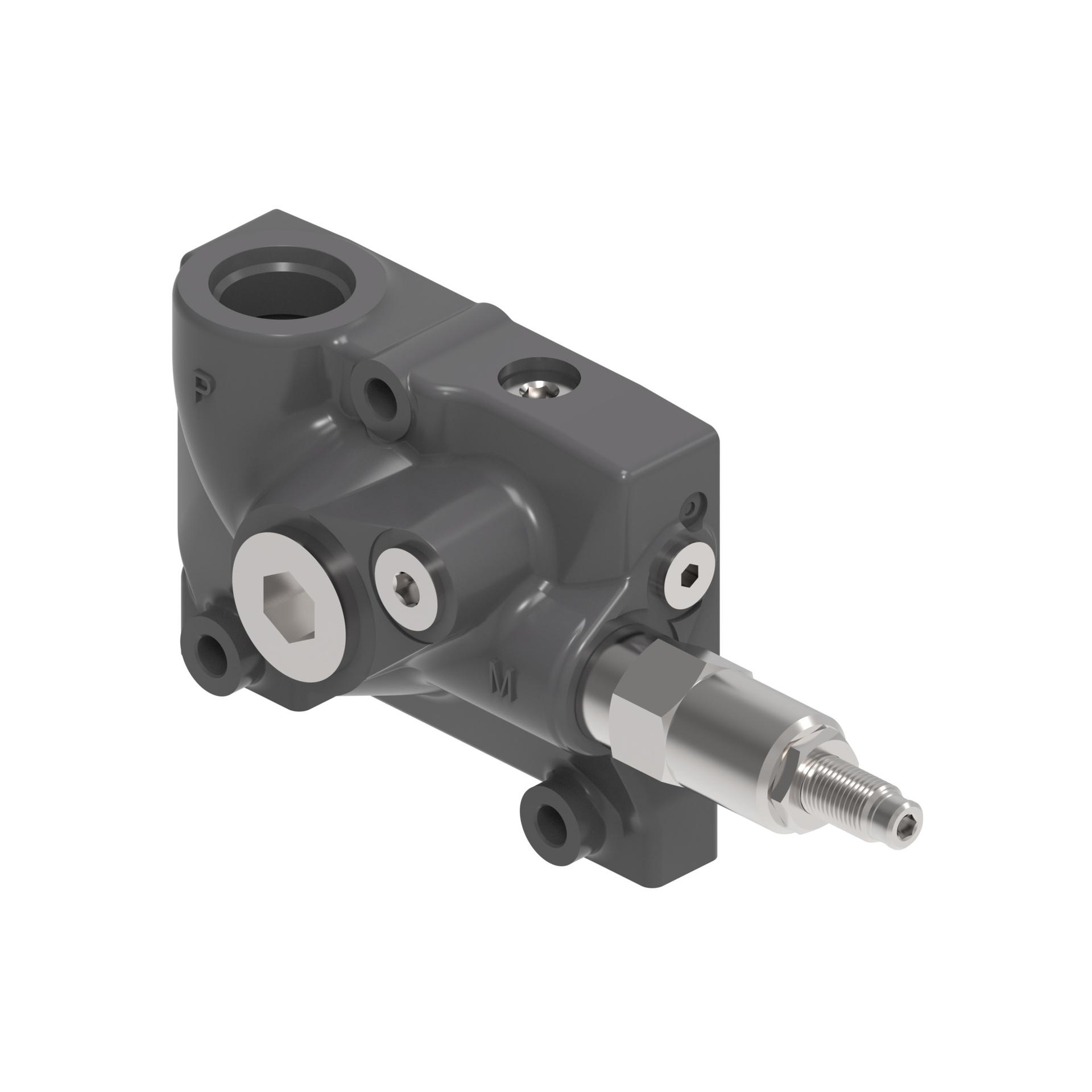

    DVG inlet modules

    A DVG series valve inlet module acts as an interface between the valve stack and the hydraulic pump. A single size fits with both DVG 60 and DVG 100 slices, and optional features can be used to tailor the module for applications such as main full-flow relief valves or pilot-pressure control valves used with solenoid-actuated work modules. Our open-center inlets are often used for fixed-displacement gear pumps, while our closed-center inlets are often used for open-circuit axial piston pumps.

  • Tile image

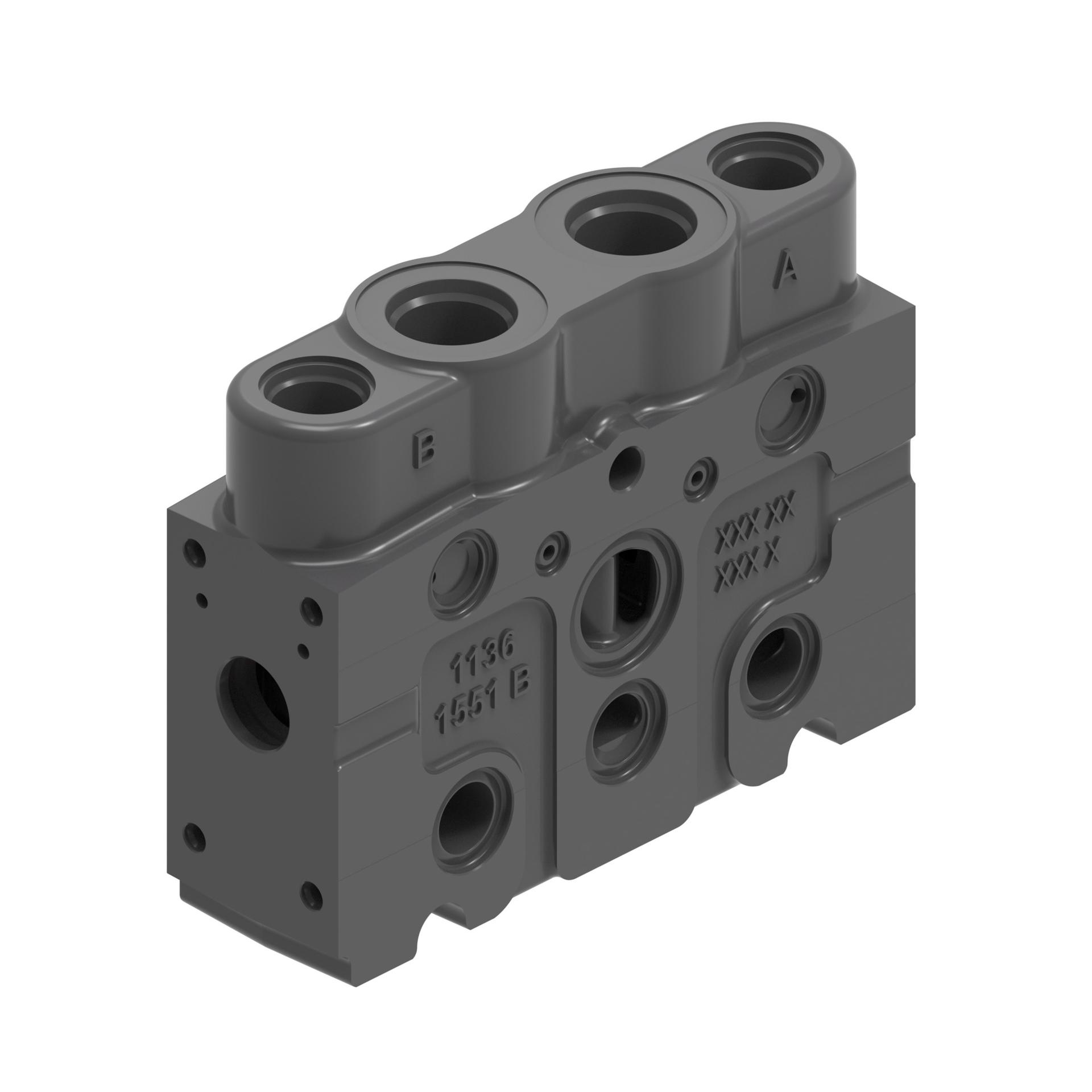

    DVG work modules

    The work module is the interface between a valve group and a work function such as a cylinder or motor. It has built-in work-section control functionality and many available features to accommodate a wide range of flows.

  • Tile image

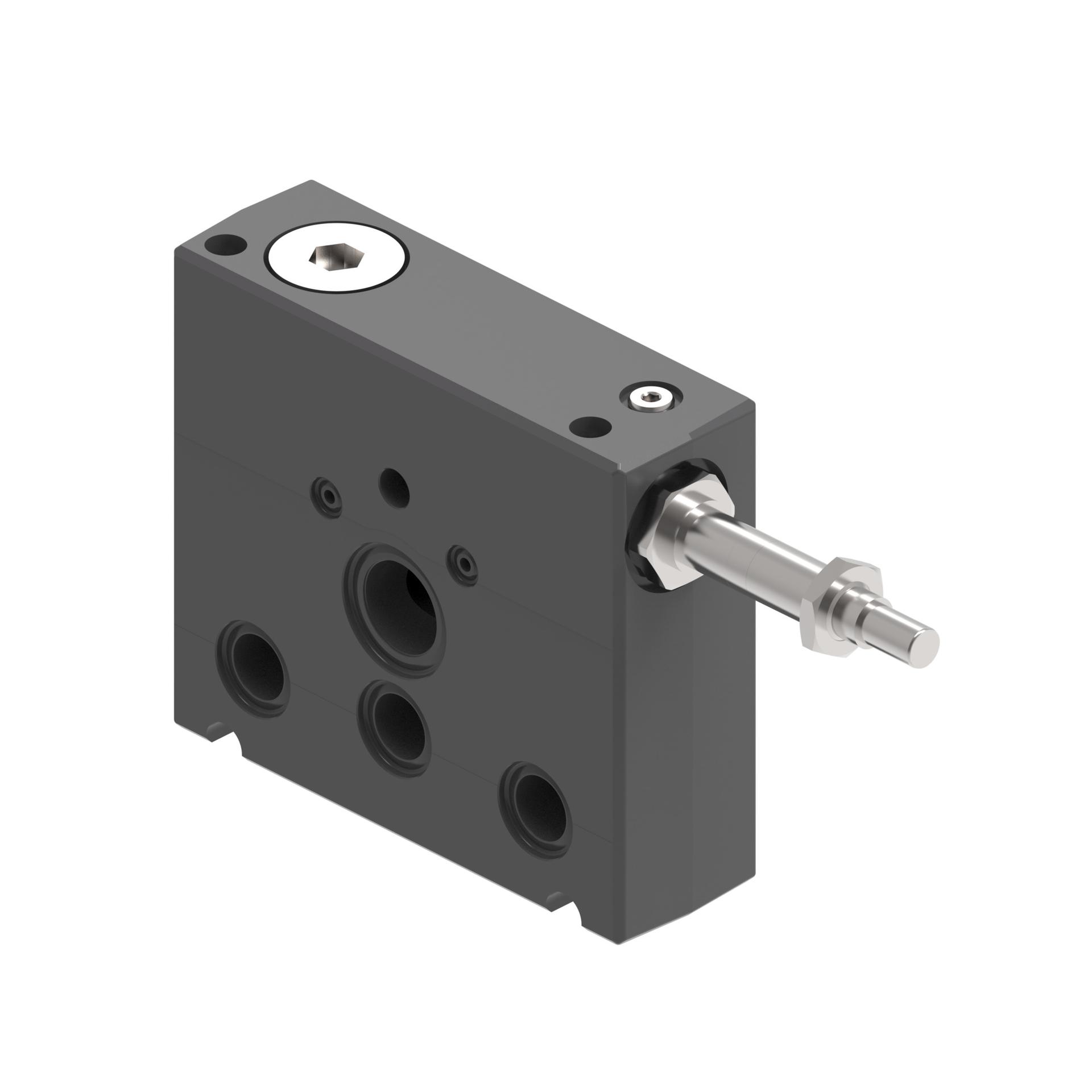

    DVG function modules

    Function modules allow you to leverage the flexibility of a platform design by adding functionality at the stack level while still allowing for variation to meet specific needs. Predefined interfaces help you get prototypes to market more quickly.

  • Tile image

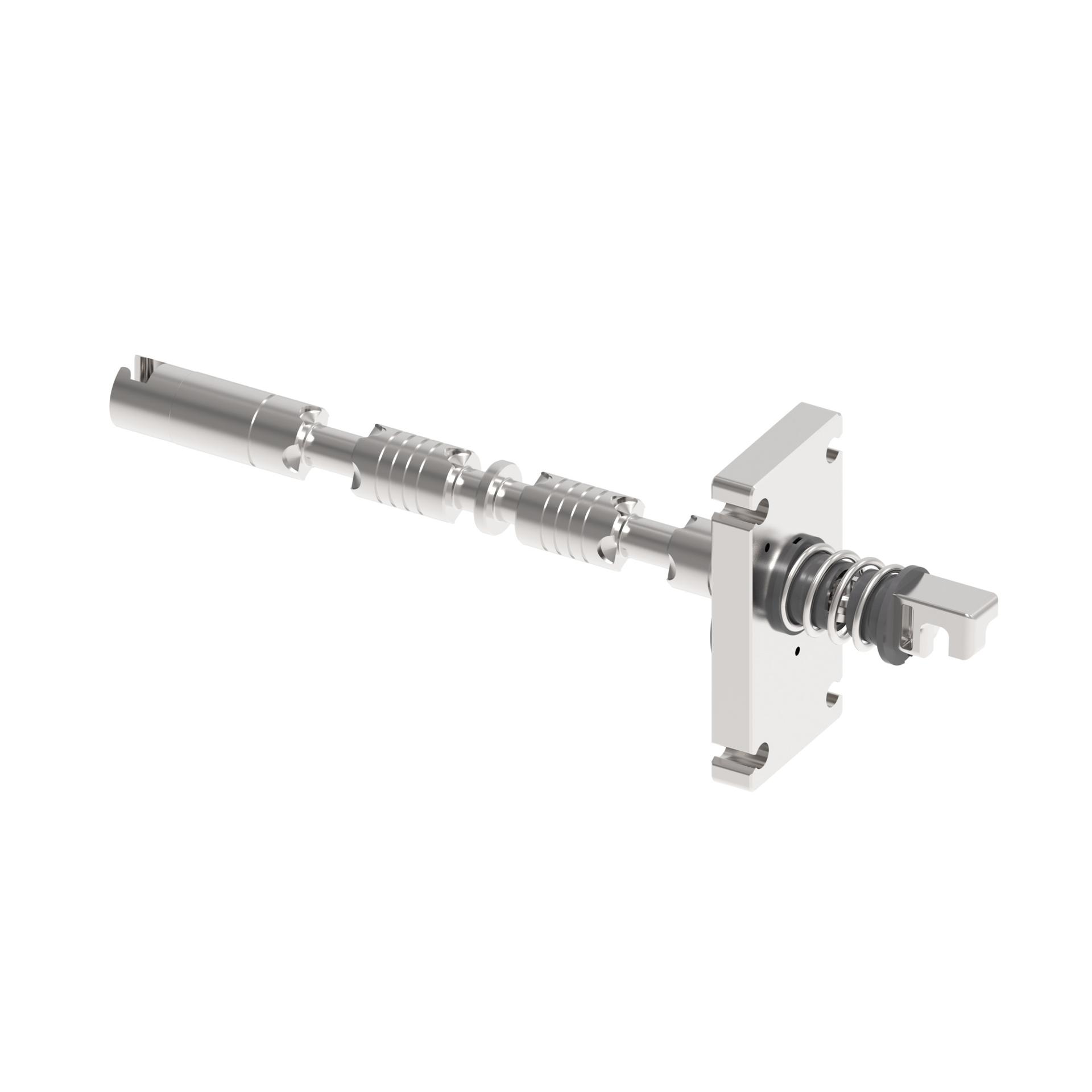

    DVG spools

    Spools are used to control the flow out of work sections, and a generic platform supports a wide variety of optional features that can be used to tailor the product to meet your specifications. Our range of DVG spools includes electrohydraulic proportional on/off, mechanical spring center, detent, and float, and electropneumatic control.

  • Tile image

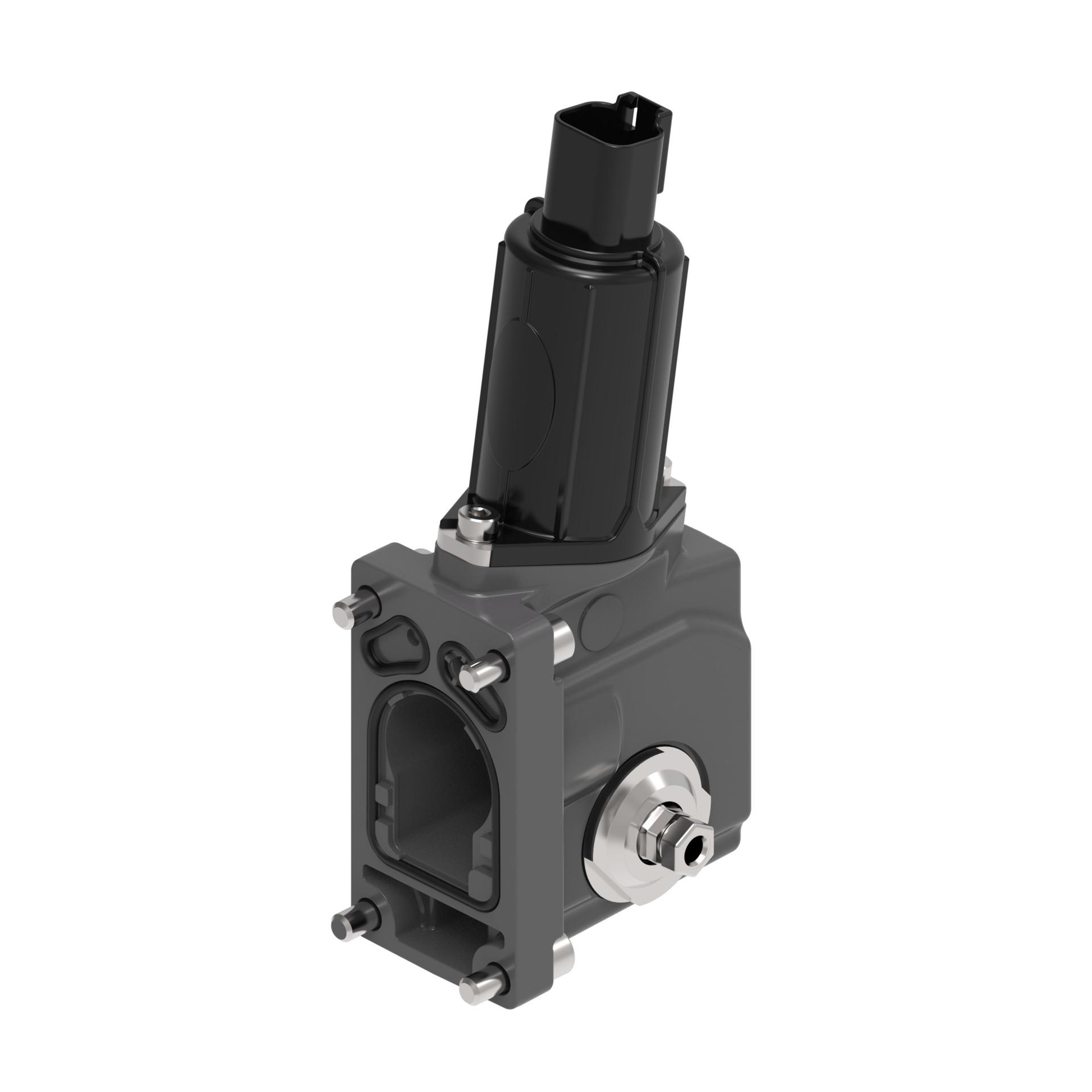

    DVG actuators

    We offer a variety of electrical, hydraulic, pneumatic, and manual actuators that can be tailored to meet the needs of your particular application. Available products include levers, max limiters, and proportional electric actuators with or without hexagonal key.

  • Tile image

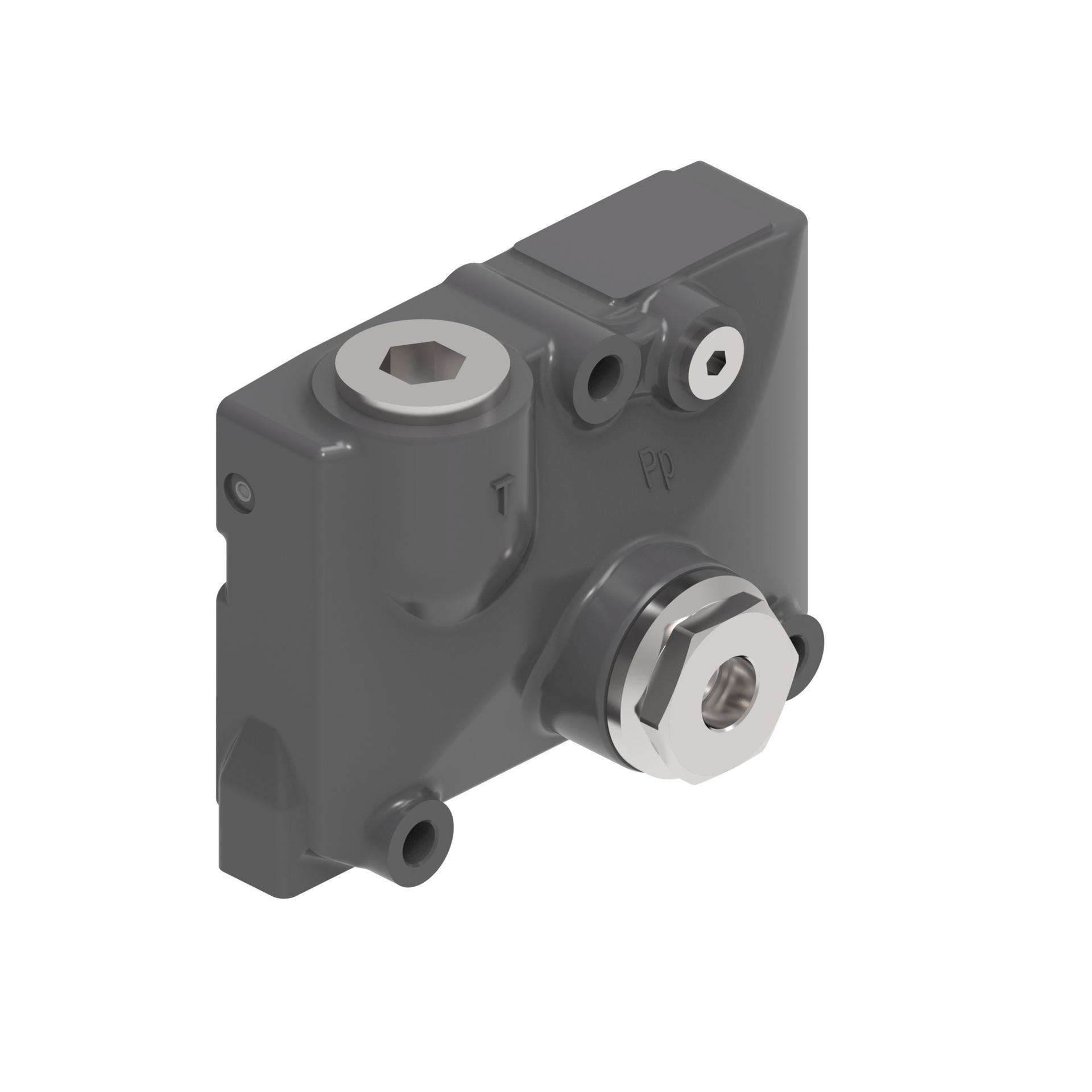

    DVG outlets

    Placed at the end, the outlet closes off the valve stack and has the outlet port that connects to the return line running to the tank. Available features include high-pressure cutout control (HPCO), pressure build-up valves, and cavity plugs.

  • Tile image

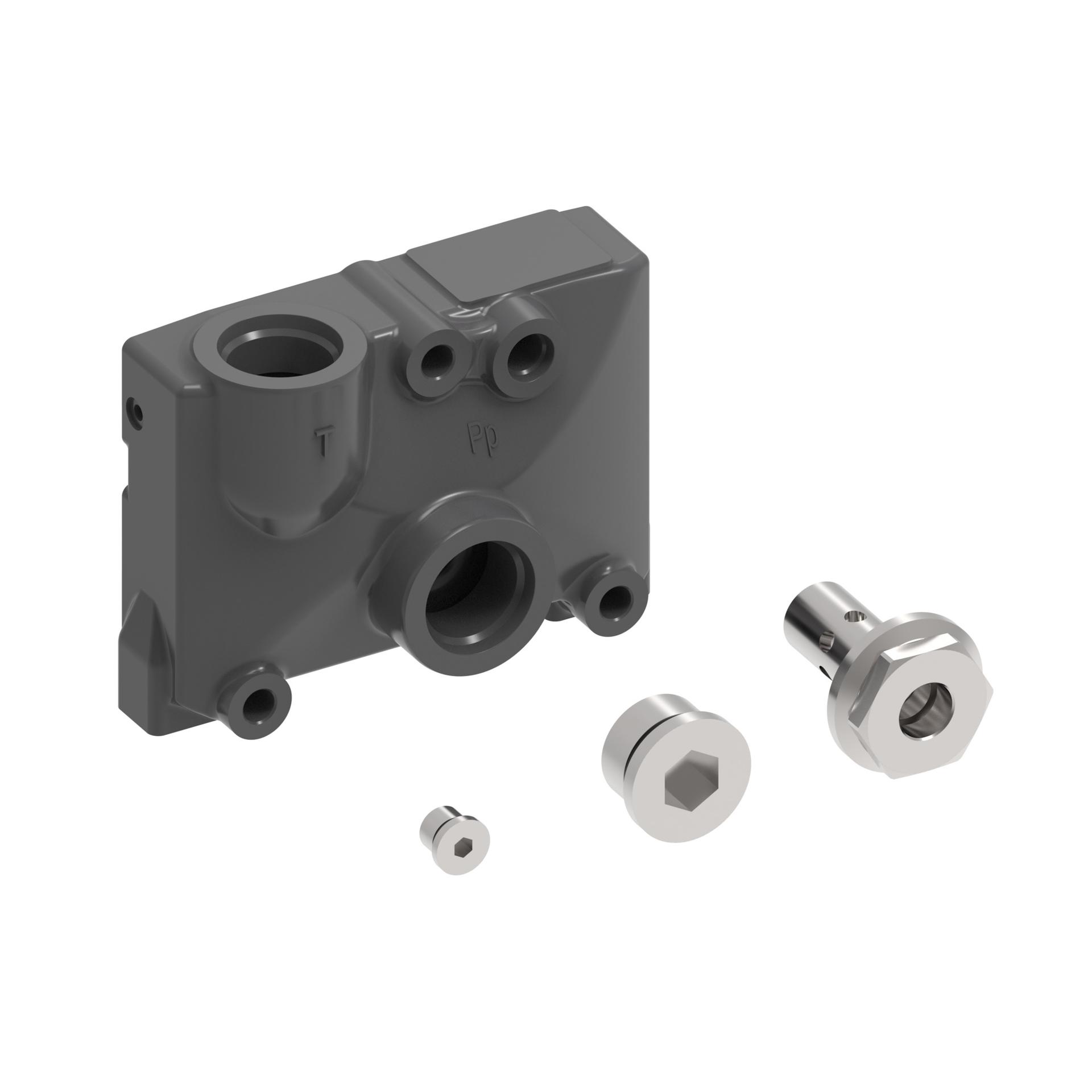

    DVG accessories

    To help you make the best use of your DVG 60/100, we provide all the accessories you might need, such as shock valves and cables.

  • Tile image

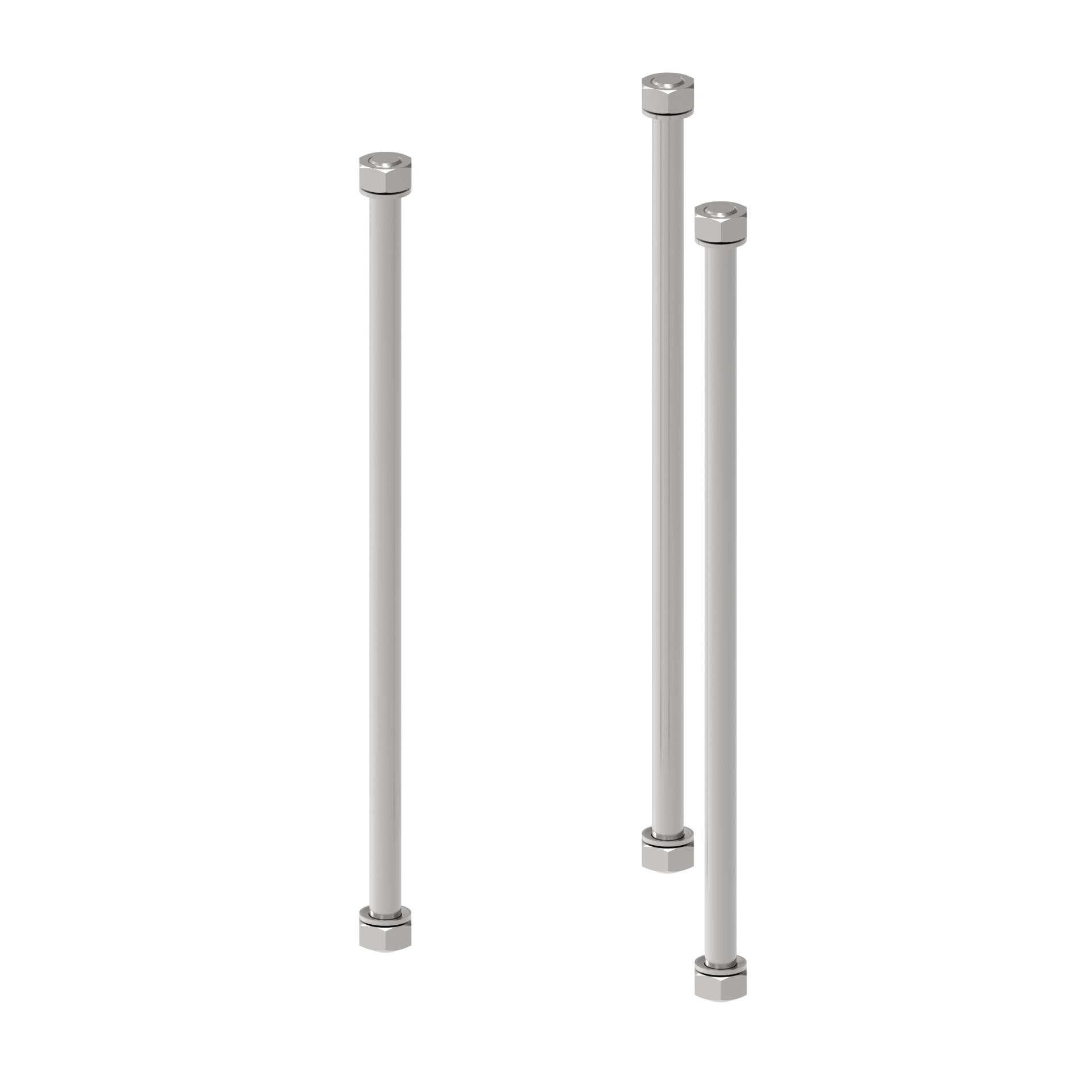

    DVG assembly kits

    Assembly kits contain three tie rods, six washers, six nuts, and an O ring. The tie rods are inserted through the entire length of the DVG valve stack, and the nuts are tightened on the inlet and outlet sides.
