Cam lobe motors

Developed with customers to meet their evolving mobile transmission needs, our THORX cam lobe motors deliver high performance and efficiency with a proven radial-piston design. The easy-to-fit CLM S and CLM T reduce shock by up to 70 percent in applications such as skid loaders, while the CLM C motor is optimized for drum drives, offering up to 90 percent ripple reduction and 92 percent total efficiency for smoother compaction.

Features and benefits

  • Next-generation cam-lobe technology
  • Robust sealing
  • Modular options such as speed sensors and parking brakes
  • Reliable, high-torque performance
  • Optimized for mobile applications

Applications

  • Construction machines with chain drives
  • Off-highway machines
  • Skid loaders
  • Drum drives

Product types shown: 3

  • CLM C motors category image

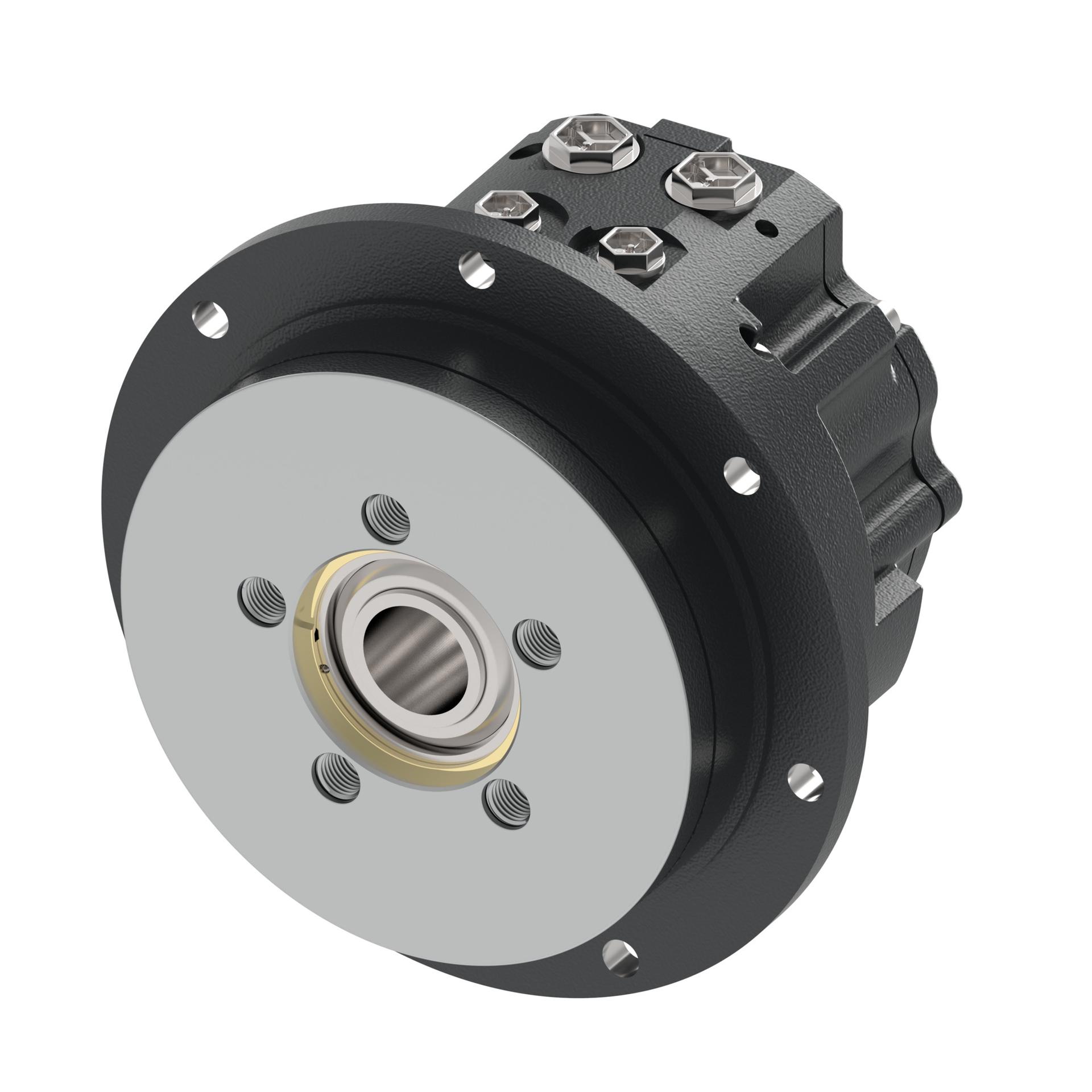

    CLM C motors

    Combined with an integrated multi-disc parking brake, CLM C motors are optimized for size, lifetime, performance, and total installed cost. Tapered roller bearings allow for high radial loads, while the novel design of the rotating group provides market-leading efficiency.

  • CLM S motors category image

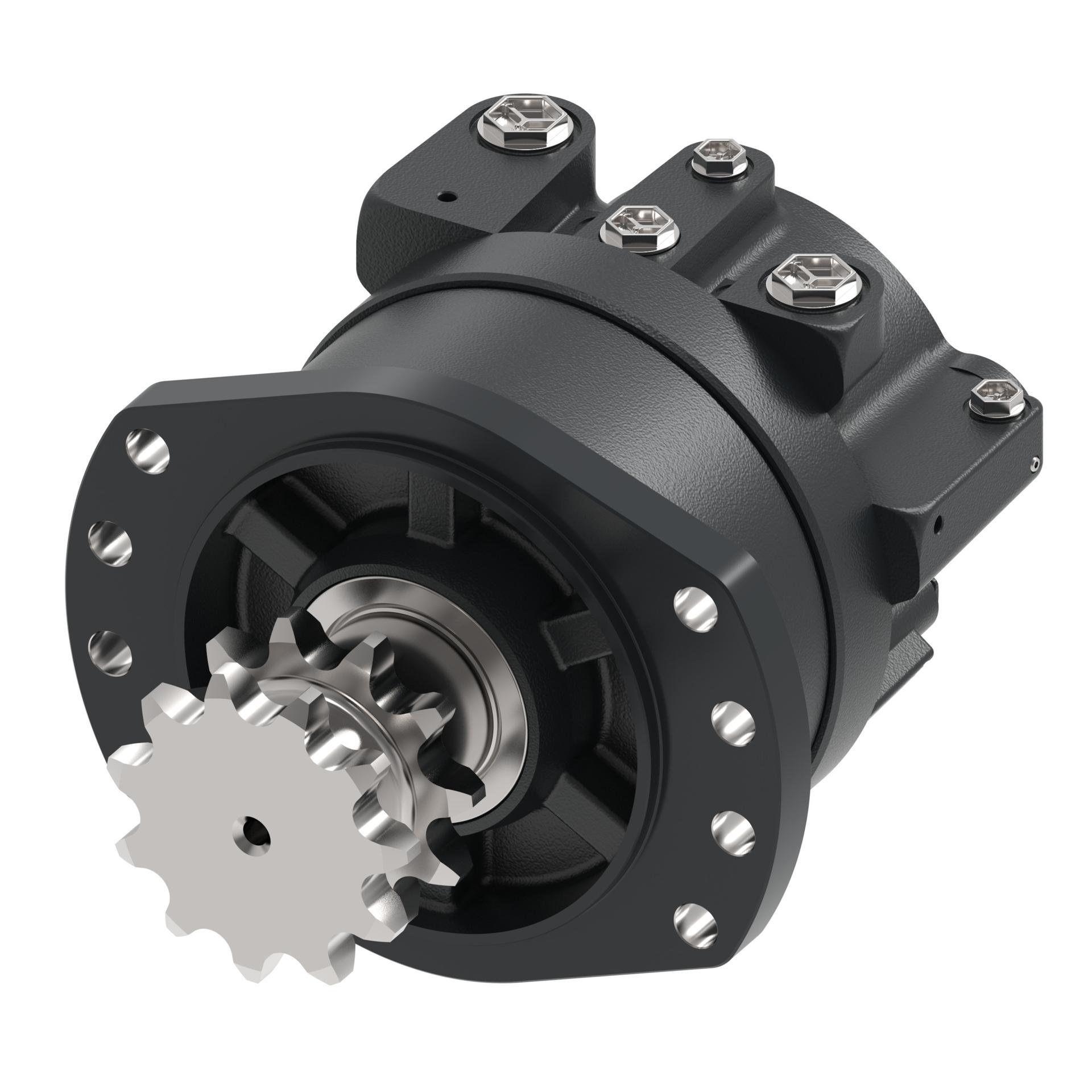

    CLM S motors

    With displacement from ranging from 160 cm3 to 820 cm3 [9.8 in3 to 50.0 in3] for pressures up to 400 bar [5,800 psi], the CLM S motor is designed to fit construction machines with chain drives, such as skid steer loaders. Using proven technology refined by Danfoss, this radial piston motor has been optimized for physical size, life span, features, and installation cost. It is most commonly combined with other products to transfer and control hydraulic power in closed-circuit medium-power propel applications.

  • CLM T motors category image

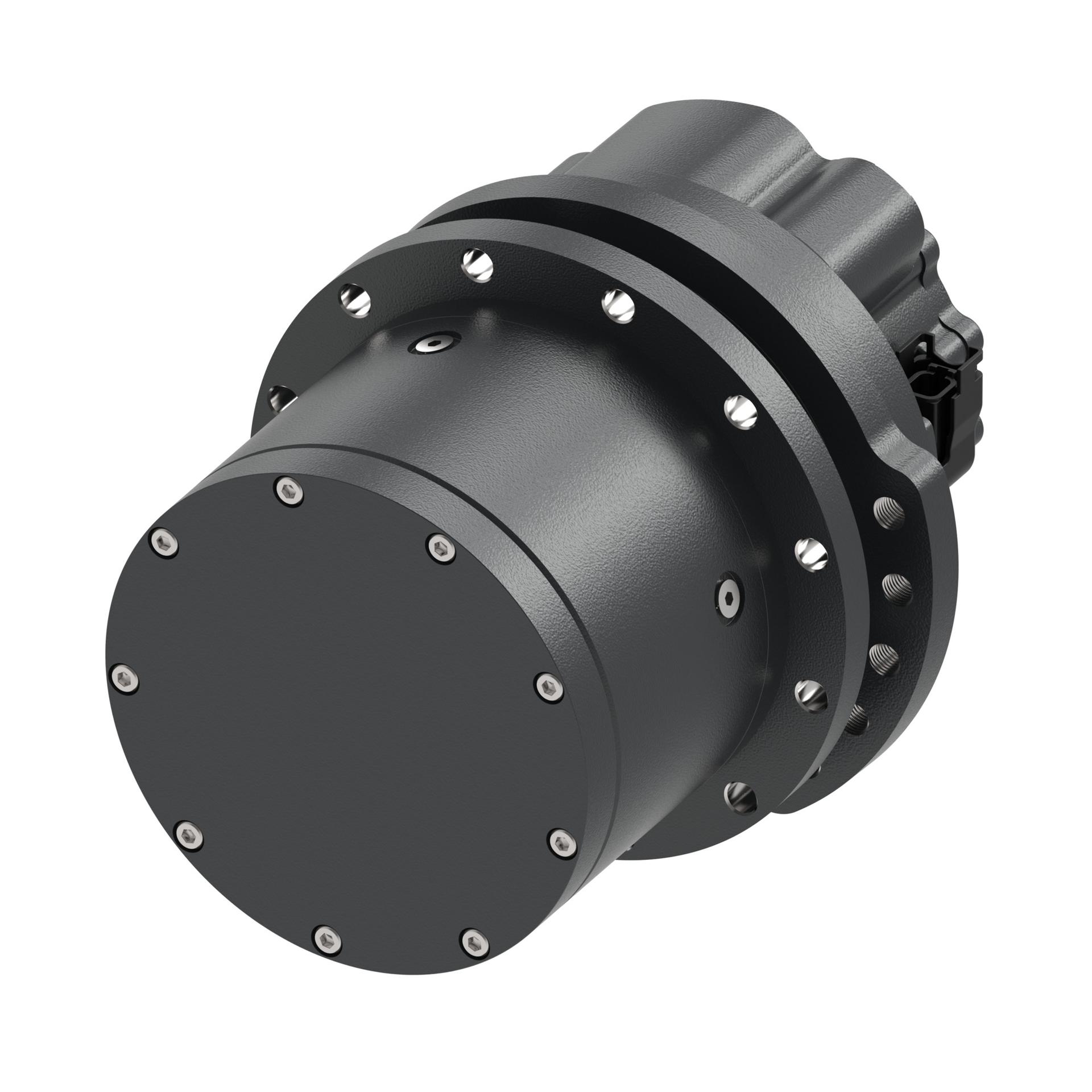

    CLM T motors

    Designed for the toughest jobs, our CLM T motors provide high efficiency, smooth speed changeover, long lifetime, and integrated parking brakes. The novel shape and central flange fully use the space within even the smallest tracks. CLM T motors are interchangeable with today's most common track loader solutions, and they can be easily configured for size, mounting, and ports.
