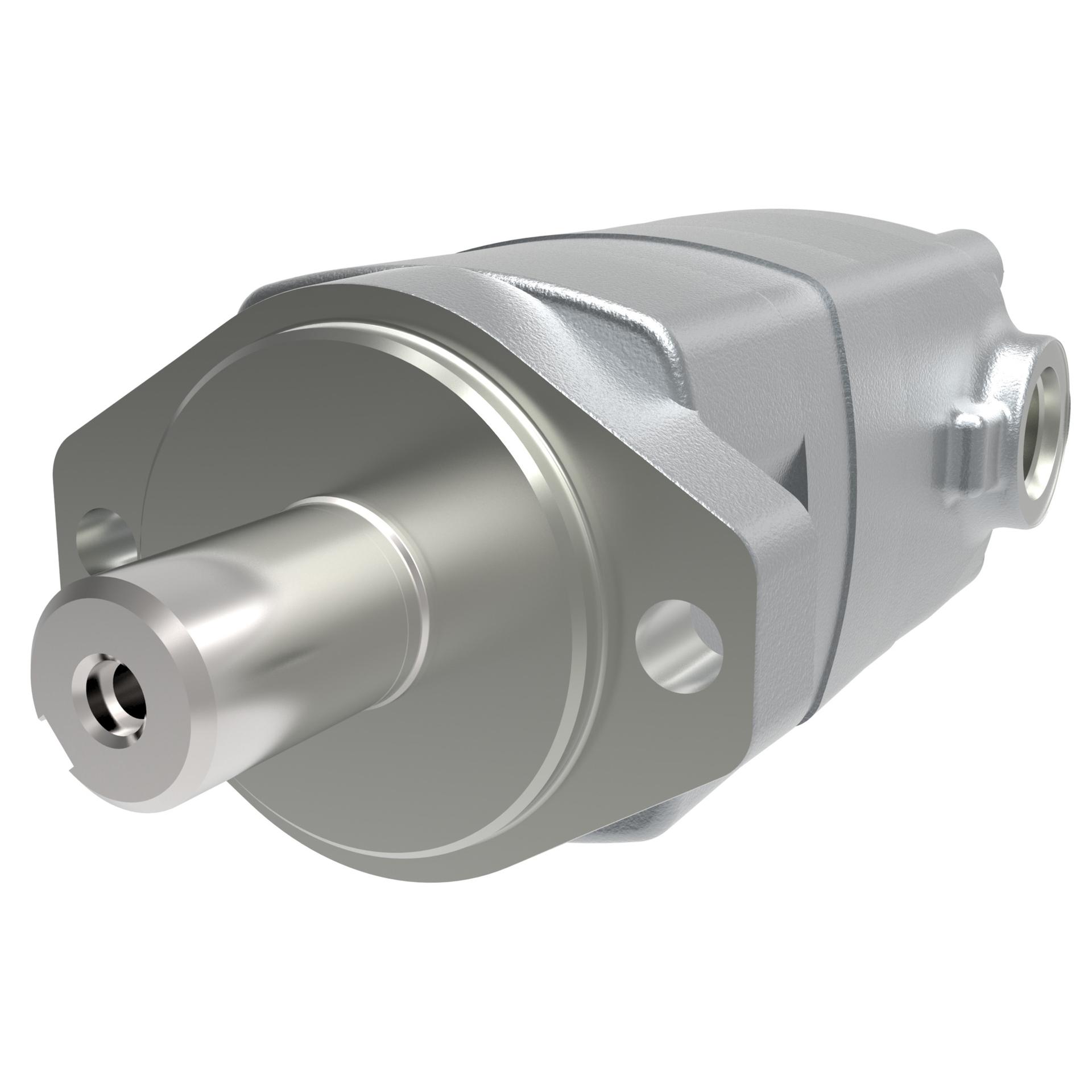

Product specifications
Characteristic | Value |
|---|---|
| Motor function | Standard |
| Shaft Seal | NBR - Standard |
| Dust seal | Standard |
| Sensor | Speed, Hall effect, 30 pulses, 127 mm [5.0 inch] wire length, Packard weather pac shroud connector |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Brake Release Port Dimension | n/a |
| Brand | Danfoss |
| Check valve function | Yes |
| Design code | 06 |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Front bearing type | Tapered roller bearing |
| Geometric displacement [cm3/r [in3/r]] | 158.1 [9.65] |
| Hydraulic valve function | None |
| Main port dimension | 1 1/16 - 12 UN-2B SAE O-Ring port |
| Main port style | Sideport - 180 deg to each other |
| Main port thread type | UN / UNF |
| Model Code | M02096AC02AF0100010AA0000AAAAF |
| Motor Series | 2000 Series |
| Motor size | 160 |
| Motor type | Standard |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A |
| Mounting flange type | 2 Bolt - A |
| Orbital gearwheel set | Standard |
| Orbital gearwheel set type | Geroler |
| Paint information | n/a |
| Painted | No |
| Rear bearing type | Tapered roller bearing |
| SHAFT TYPE | Straight |
| Seal Kit | 61258-000 |
| Shaft Key | Square key, 5/16 x 5/16 x 1 1/4 inch |
| Shaft dimension | Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end |
| Special Features Assembly | Standard |
| Special features hardware | Standard |
| Sub brand | Char-Lynn |
| Valve system | Disc valve with valve drive |
