Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design Code06
Drain Port Dimension7/16 - 20 UNF-2B SAE O-Ring port
Dust sealStandard
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]158.1 [9.65]
Hydraulic valve functionNone
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Main port styleSideport - staggered
Main port thread typeUN / UNF

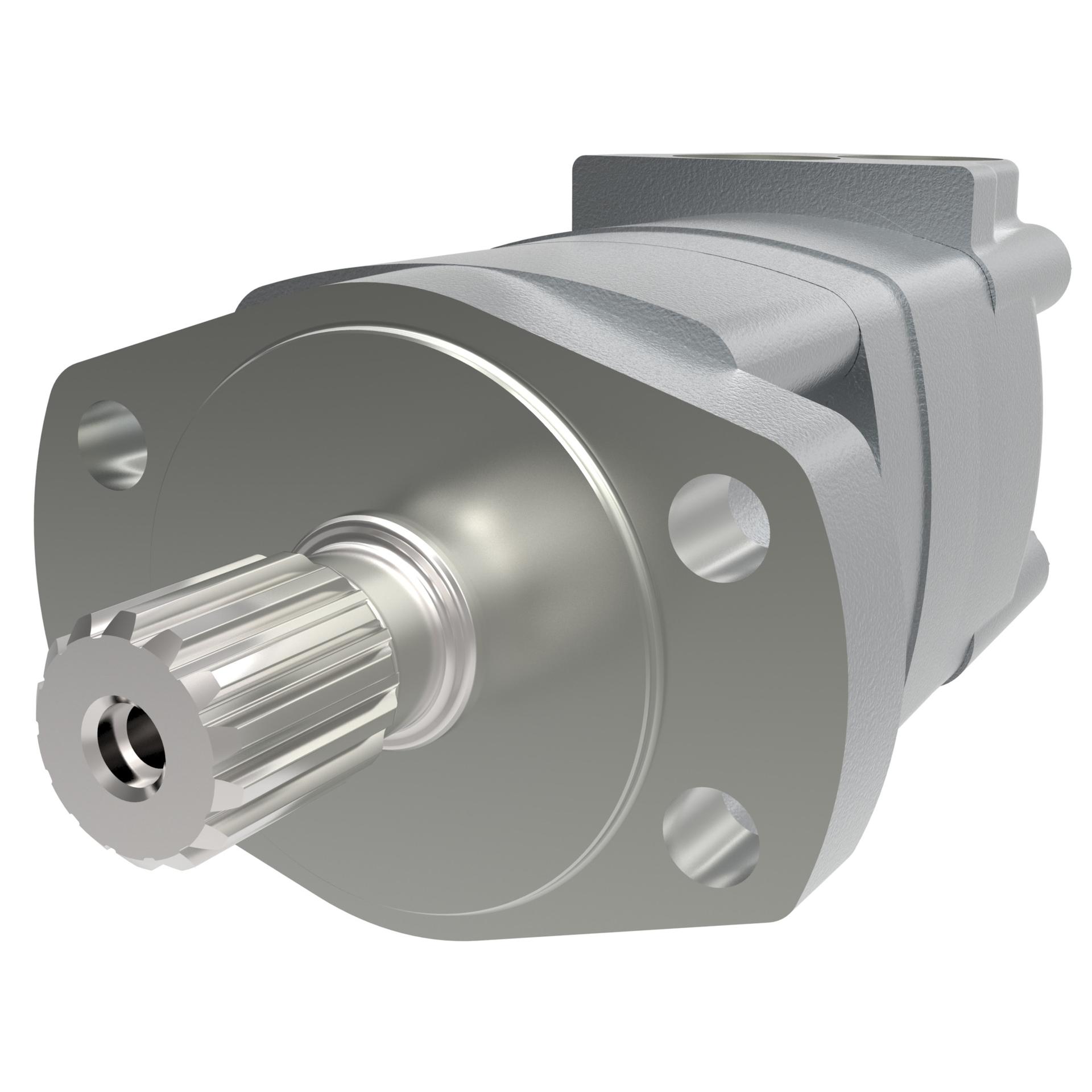

Model CodeM02096AJ04AA0100010000000AAAAF
Motor Series2000 Series
Motor functionStandard
Motor size160
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 2.8, 106.4, 13.6 [3.25 x 0.11, 4.19, 0.54]
Mounting flange type4 Bolt - Magneto
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationn/a
PaintedNo
Rear bearing typeTapered roller bearing
Seal Kit61258-000
SensorNone
Shaft Keyn/a
Shaft SealNBR - Standard
Shaft dimensionDia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end
Shaft typeSplined
Special Features AssemblyStandard
Special features hardwareStandard
Sub brandChar-Lynn
Valve systemDisc valve with valve drive
