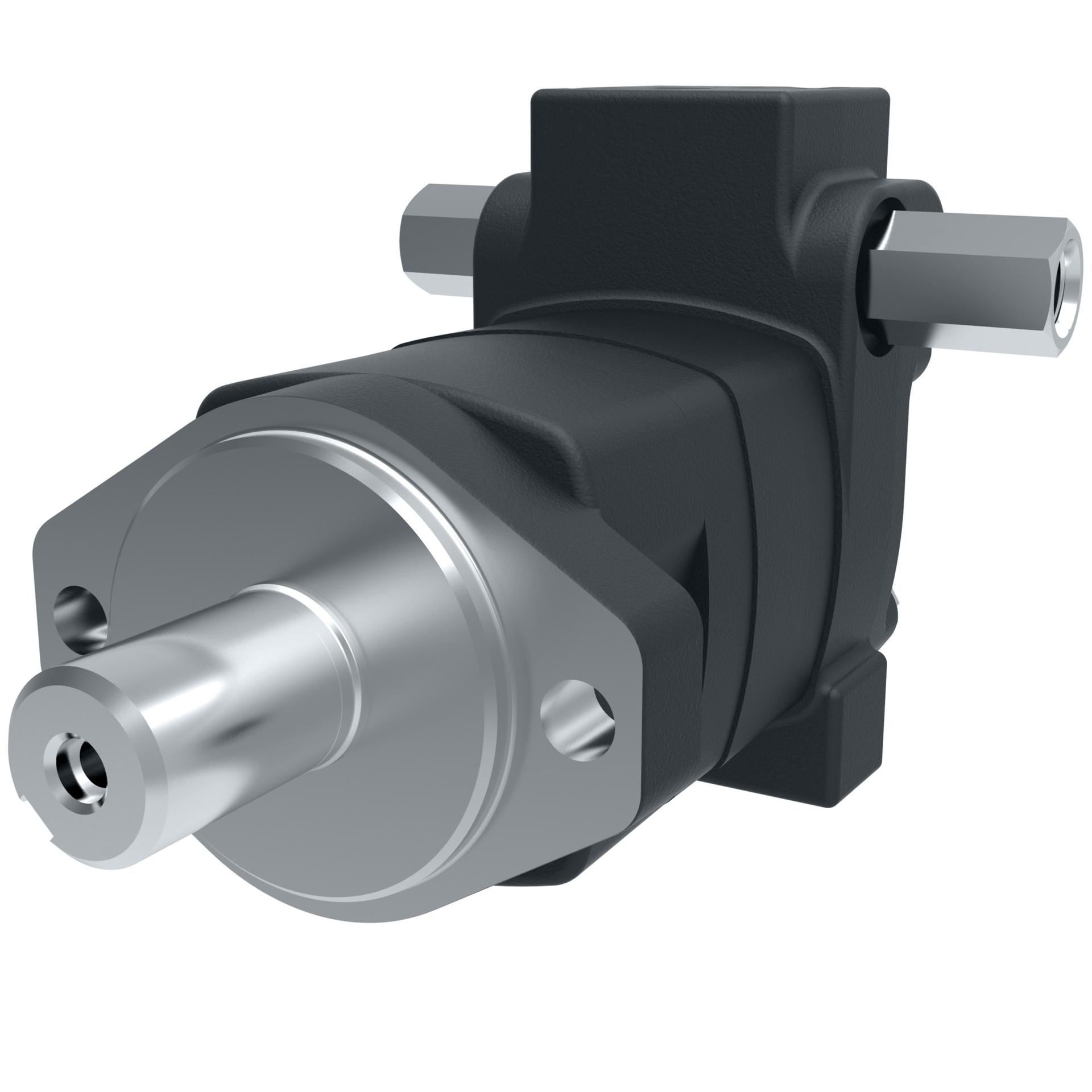

Product specifications
Characteristic | Value |
|---|---|
| Motor function | Standard |
| MOUNTING TYPE | 2 s p83 b106 h14 |
| Port Type | Sta 7/8-14 |
| Shaft Seal | NBR - Standard |
| Dust seal | Standard |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Accessories | None |
| Brake Release Port Dimension | n/a |
| Brand | Danfoss |
| CUSTOMER IDENTIFICATION | None |
| Case flow options | 7/16-20 |
| Check valve function | Yes |
| Design Code | 06 |
| Design code | Sixth |
| Displacement | 130.6 cm3/r [7.97 in3/r] |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Front bearing type | Tapered roller bearing |
| Geometric displacement [cm3/r [in3/r]] | 130.6 [7.97] |
| Geroler options | Standard |
| Hydraulic valve function | Cross over relief valve - Spec. Component |
| Low pressure relief | None |
| Low pressure relief | None |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
| Main port style | Sideport - staggered |
| Main port thread type | UN / UNF |
| Model Code | M02080AC02AA0104110000000ABAAF |
| Motor Series | 2000 Series |
| Motor size | 130 |
| Motor type | Standard |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A |
| Mounting flange type | 2 Bolt - A |
| Mounting type | 2 s p83 b106 h14 |
| Orbital gearwheel set | Standard |
| Orbital gearwheel set type | Geroler |
| Output shaft type | Str 1.25in 3/8-16 s5/16x1.25in |
| Output shaft type | Str 1.25in 3/8-16 s5/16x1.25in |
| Paint information | Primer, Black, Low gloss |
| Paint packaging | Primer low gloss black |
| Painted | Yes |
| Pressure flow option | Icor housing c-10-2 cavity |
| Product | Motor |
| Product View (Switch) | Global (Standard) |
| Rear bearing type | Tapered roller bearing |
| Seal Kit | 9900404-000 |
| Seal options | Standard |
| Seal options | Standard |
| Series | 2000 series |
| Series | 2000 series |
| Shaft Key | Square key, 5/16 x 5/16 x 1 1/4 inch |
| Shaft dimension | Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft type | Straight |
| Special Features Assembly | Standard |
| Special assembly instructions | None |
| Special features hardware | Spec. Component |
| Sub brand | Char-Lynn |
| Valve system | Disc valve with valve drive |
