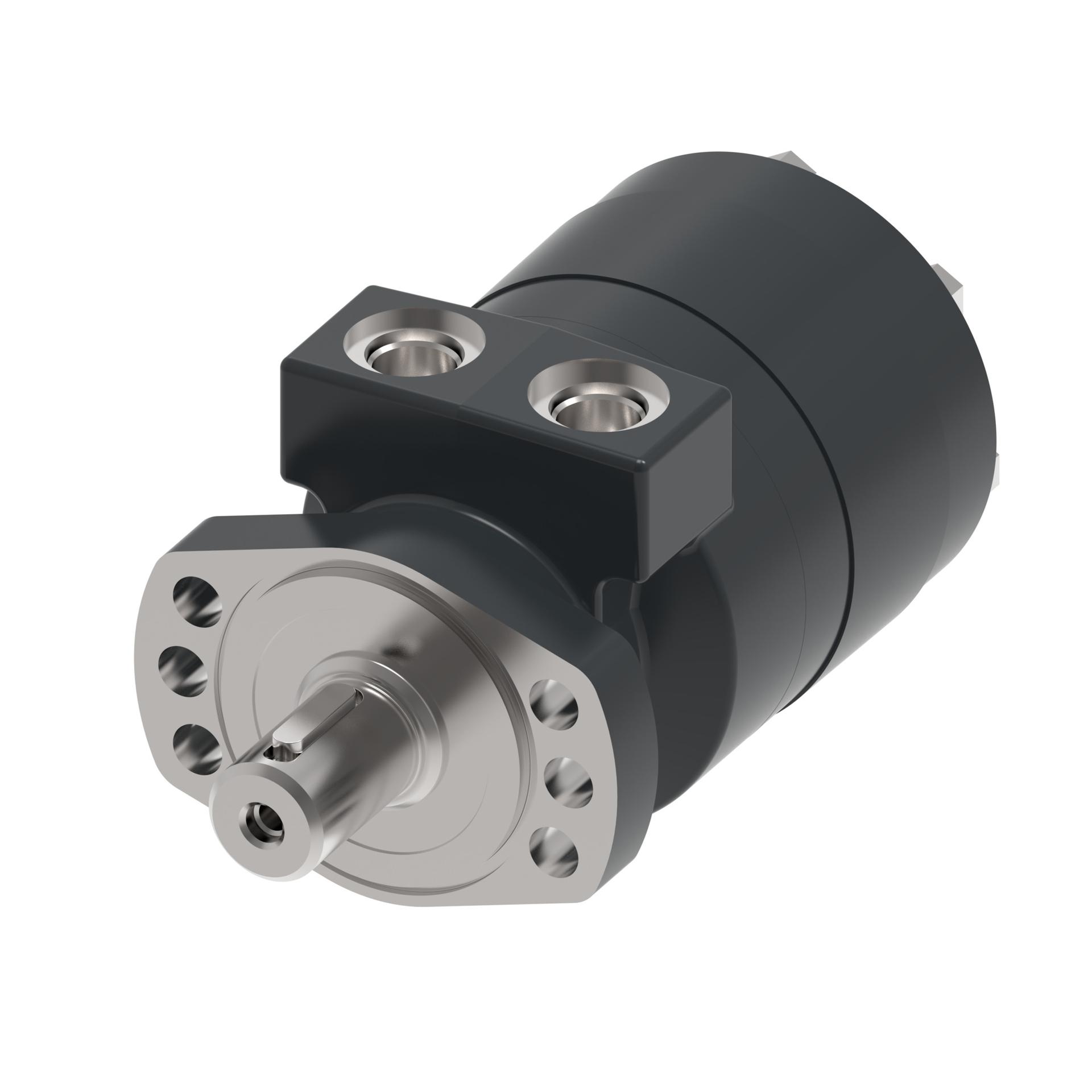

Delta series motors
The Delta motor provides torque up to 1,299 Nm [958 lb-ft] andmany best-in-class features including its optimized Geroler, disc valve technology, and bearing capacity. An optional spring-applied, pressure-release parking brake offers a six-to-one mechanical advantage for dependable load holding.
Features and benefits
- Excellent reliability with a time-proven Char-Lynn design
- Leak-resistant motor with the front bearing protecting the shaft seal
- Shaft sizes up to 1-5/8 inch
- Perfect replacement for Parker ® TF-TG and White TM RE motors
- Same torque as the 4000 series
- Lowest no-load pressure drop for longer life and lower-temperature operation
- High side-load capacity with 4,500 lbs at 3” from the mount face
Applications
- Scissor lift
- Boom lift
- Industrial sweeper
- Mower
Specifications
- 13 geroler element displacements
- Flow 75 l/min [20 US gal/min] continuous and 114 l/min [30 US gal/min] intermittent*
- Speed up to 668 rpm continuous and 831 rpm intermittent
- Pressure 207 bar [3,000 psi] continuous and 276 bar [4,000 psi] intermittent
- Torque 1,039 Nm [9,199 lb in] continuous and 1,253 Nm [11,100 lb in] intermittent
*Intermittent operation refers to operation up to six seconds every minute
