Product specifications
Characteristic | Value |
|---|---|
| Brand | Danfoss |
| CPRV setting | CPRV, 240 PSI (16.6 BAR) |
| CPRV type | STANDARD (CPRV) |
| Design code | Design code B |
| Design type | FIXED CLEARANCE W LIP SEAL |
| Displacement | 3.316 cid (54.34 cc) |
| End cover and comp valve block | ISV, HRS, CPRV |
| Flow rate GPM | 62.5 |
| Flow rate LPM | 236.8 |
| HPRV setting port A | HPRV A, NONE |
| HPRV setting port B | HPRV B, NONE |
| High pres relief valve port A | NONE (HPRV-A) |
| High pres relief valve port B | NONE (HPRV-B) |
| Identification | Standard |
| Main ports | 1.00 code 62 opp side |
| Maximum output speed | 4357 |
| Maximum temperature C | 82.20 |
| Maximum temperature F | 180.00 |
| Model Code | HHD333321BH1F000000000B |
| Model Code 1 | HHD333321BH1F000000000B |
| Output shaft | 21T 16/32 PITCH SPLINE |
| Output torque NM | 357.8 |
| Output torque lbf-in2 | 3166.5 |
| PAINT | STANDARD, PRIMER BLUE |

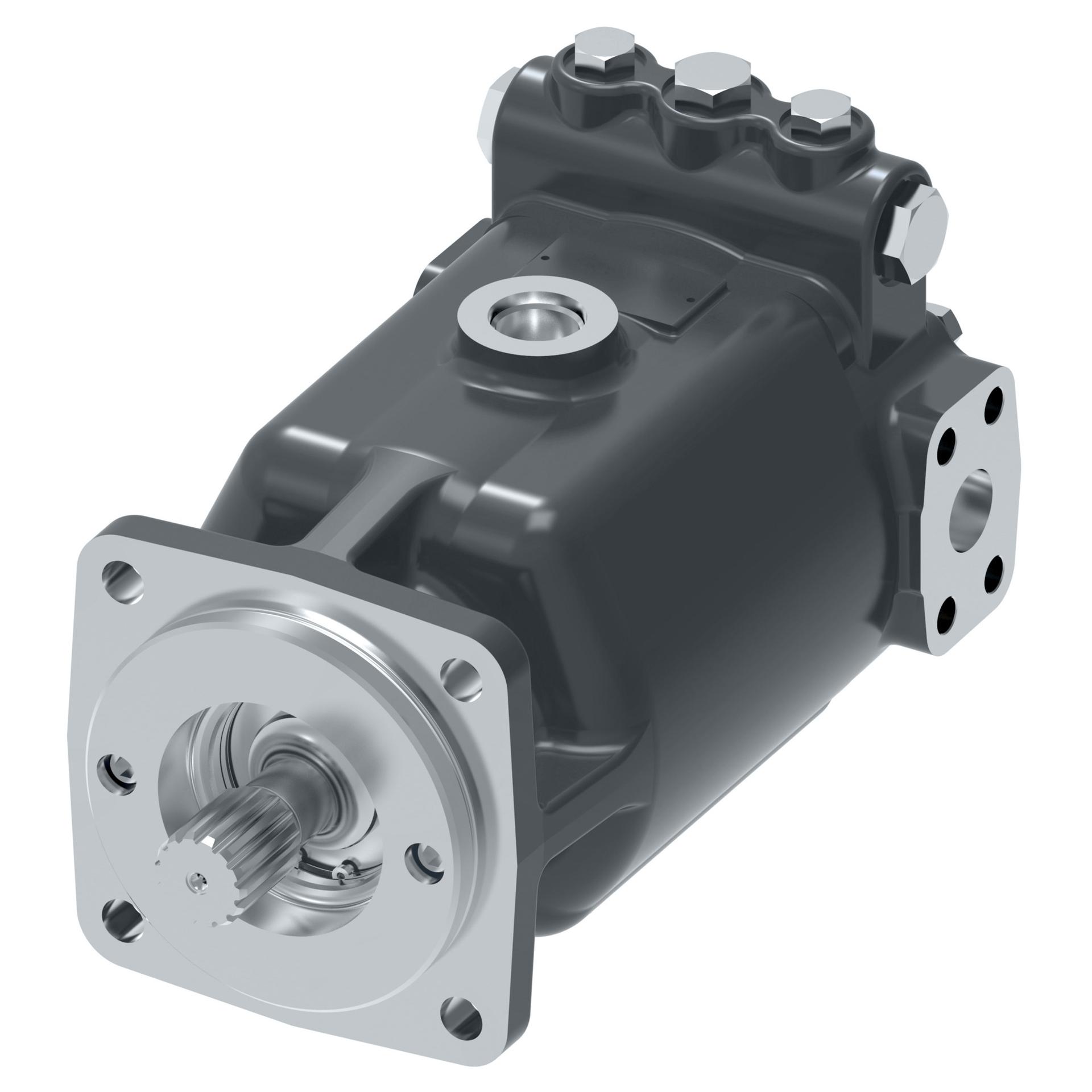

| Product series | HEAVY DUTY HST FIX DISP MOTOR |
| Product type | FIXED DISPLACEMENT MOTOR |
| Special features | NO SPECIAL FEATURES |
| Speed sensor | No speed sensor |
| Working pressure bar | 413.7 |
| Working pressure psi | 6000 |
