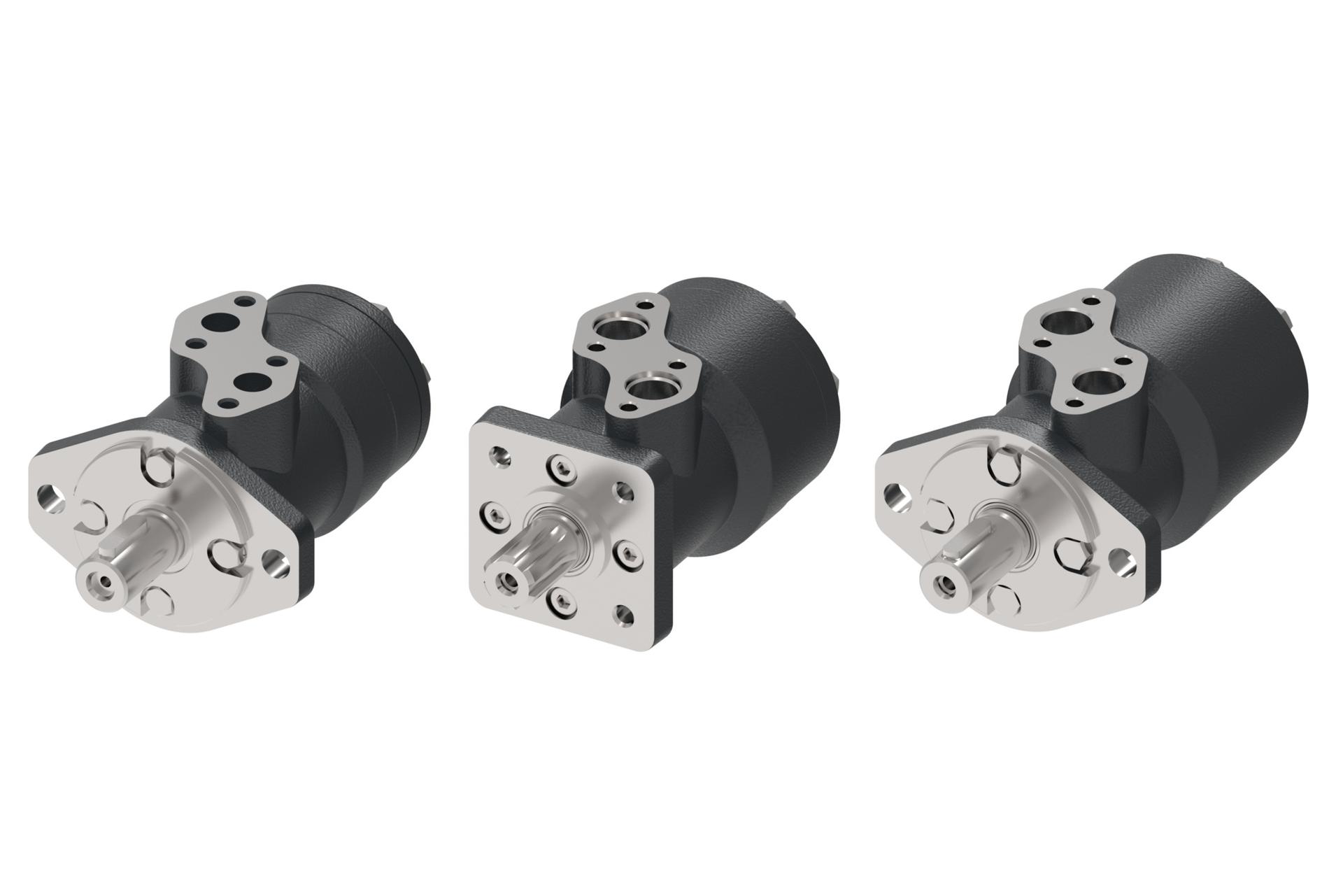

XLH and XLS series motors

Xcel series spool-valve motors for low- and medium-duty applications are built to optimize performance and value. They are available with displacements from 50 cm³ to 485 cm³ [3.1 in³ to 30 in³] to provide reliable, proven solutions backed by Danfoss expertise.

Features and benefits

Proven orbit motor principle
Hydrodynamic journal bearings
Three moving components (Gerotor-star, drive, and shaft)
Three-zone pressure design
Compact, powerful package
High efficiency
Long bearing life (at rated loads)

Applications

Salt and sand spreaders
Street cleaner brushes
Combine reel drives
Feed-grinding augers
Auger swing drives
Stake-down motors

To select from the full range of orbital motors, see the orbital motor quick selector.

XLH specifications

Displacement (cm³/r) [in³/r]	53 [3.2]	63 [3.8]	80 [4.9]	100 [6.2]	125 [7.6]	160 [9.6]	200 [12.2]	245 [14.9]	315 [19.2]	390 [23.8]	485 [30.0]
Continuous max speed (rpm)	721	693	710	568	462	354	286	234	174	144	114
Continuous torque (Nm) [lb in]	83 [735]	104 [920]	130 [1,150]	162 [1,430]	200 [1,770]	242 [2,140]	287 [2,540]	318 [2,815]	377 [3,340]	419 [3,705]	426 [3,770]

XLS specifications

Displacement (cm³/r) [in³/r]	50 [3.1]	80 [4.9]	100 [6.2]	130 [8.0]	160 [9.6]	195 [11.9]	245 [14.9]	305 [18.7]	395 [24.0]
Continuous max speed (rpm)	1,037	757	600	467	386	313	250	199	155
Continuous torque (Nm) [lb in]	123 [1,089]	195 [1,726]	240 [2,124]	320 [2,832]	380 [3,363]	387 [3,425]	410 [3,629]	405 [3,585]	410 [3,629]
