Variable displacement axial piston motors

With displacements from 25 cm³ to 250 cm³ [1.5 in³ to 15.3 in³], our axial piston motors are suitable for both open- and closed-circuit systems. Controls for fixed, two-position, and continuously variable displacement are available, as is the zero-degree option.

Product types shown: 4

H1B bent axis variable motors
Designed primarily to be combined with other products in closed-circuit systems that transfer and control hydraulic power, H1B variable-displacement motors feature a bent-axis design, spherical pistons, and a maximum/minimum displacement ratio of 5:1 with maximum displacement between 60 cm³ and 250 cm³ [3.66 in³ and 15.25 in³]. Rated output speeds range from 2,350 rpm at maximum displacement to 4,300 rpm at zero displacement.

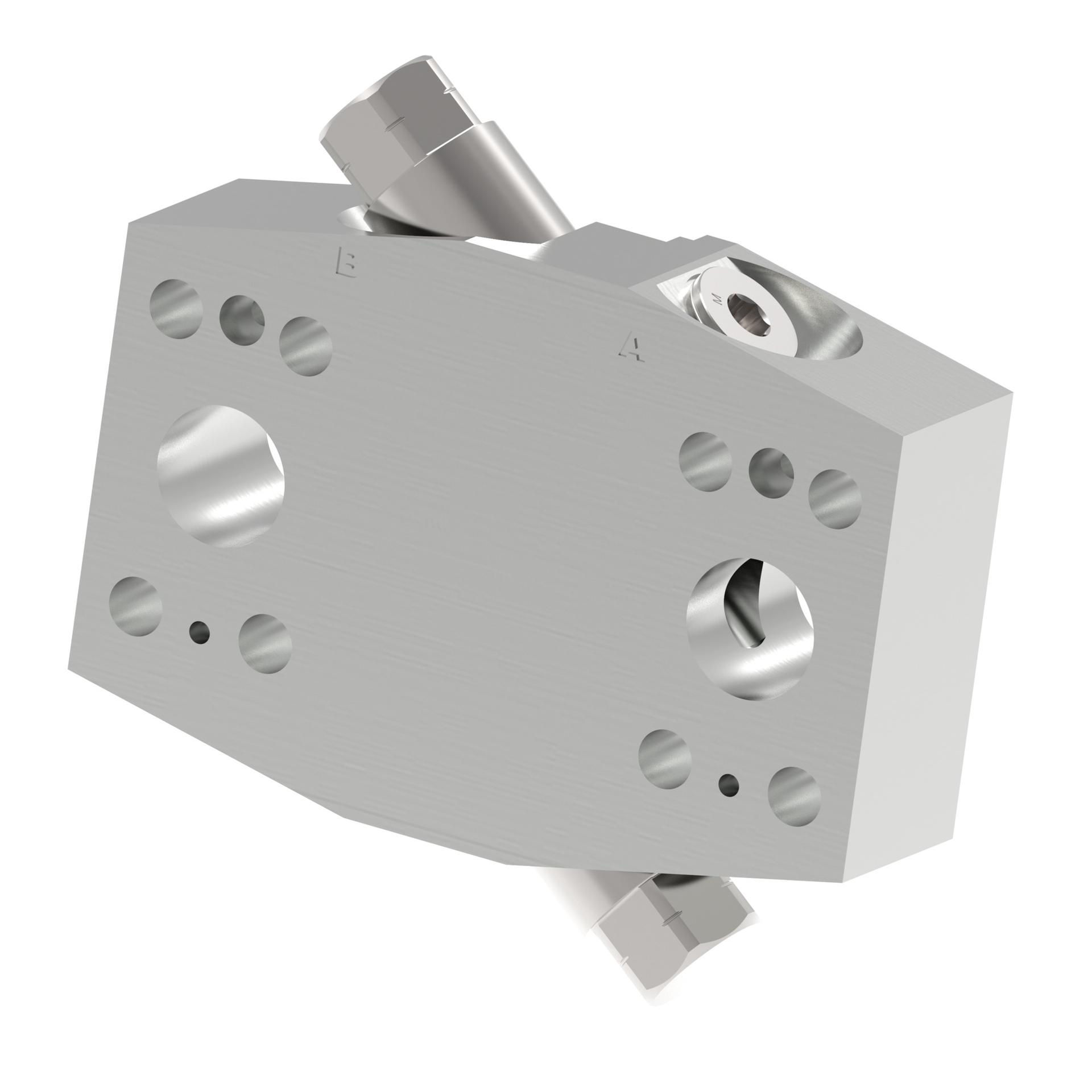

H1B counterbalance valve systems
A counterbalance valve (CBV) helps secure open-circuit applications when their motors are in a downhill or pulling-force mode. If system pressure is lost, the CBV retards spinning motion and makes losing control of the load less likely.
L/K variable motors
Based on proven technology and optimized for options, lifetime, package size, and installed cost, L/K motors are two-position axial piston motors designed for both closed and open circuits in agricultural and material-handling machines. They are available in five base displacements ranging from 25 cm³ to 45 cm³ [1.5 in³ to 2.75 in³], all of which have the same package size.
Series 40 variable motors
For medium-power applications, series 40 variable motors feature a parallel axial piston/slipper design and a tiltable swashplate. They are available with displacements ranging from 35 cm³ to 46 cm³ [2.14 in³ to 2.80 in³] and are rated for loads up to 345 bar [5,000 psi].
